P2.5 is a 2.5mm LED pixel pitch display screen for viewing distances of 2.5 meters and above, and it is considered a cost-effective small-pixel-pitch indoor LED screen option on the market. P2.5 has higher resolution than P3, a lower price than P1.5.6, and is a very popular mill high-end product.
Positioning: mid-to-high-end mainstream product (high cost-performance HD display screen)

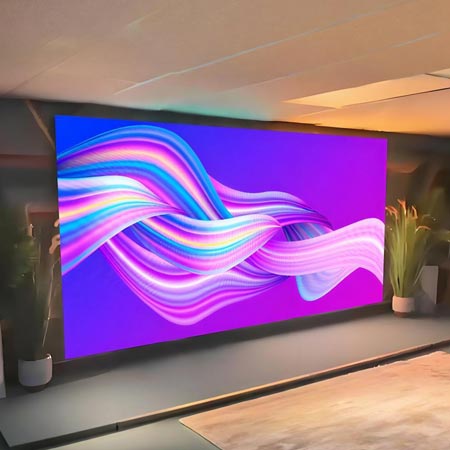

Installation: Wall-mounted/Desktop/Monitor Stand/Floor Stand

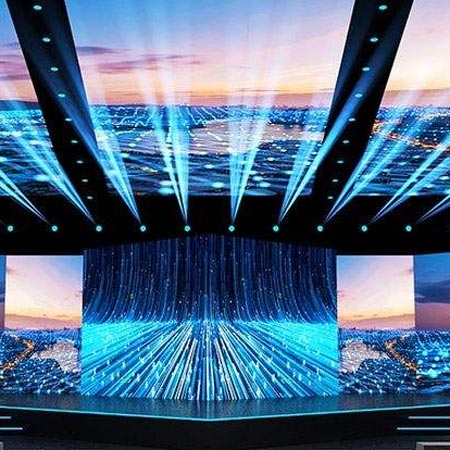

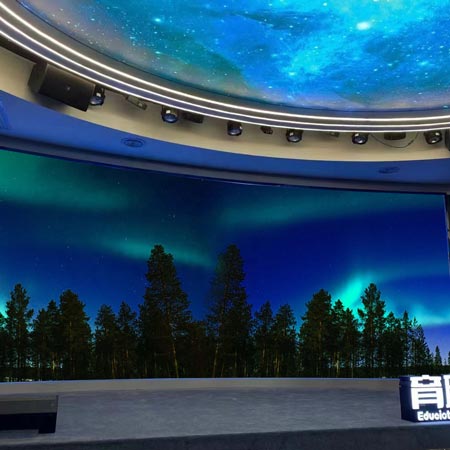

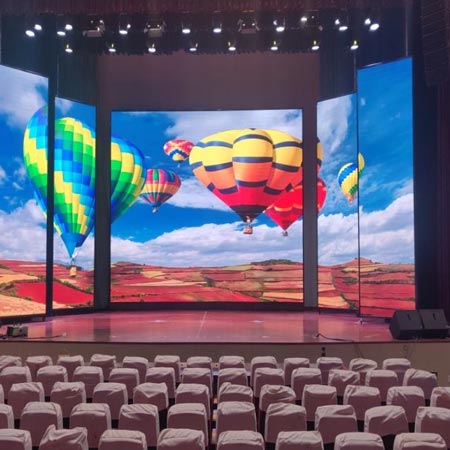

Field applications: corporate image, retail advertising, information release, and stage background.
manufacturer: Topviewled is the best source factory of P2.5

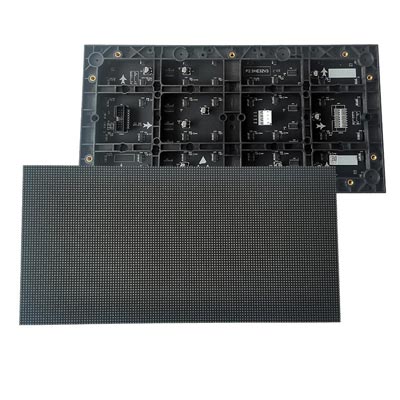

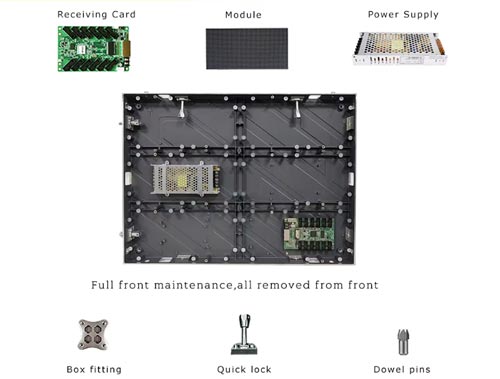

Components of the P2.5 moduleReceivingCard, Module, Power Supply, Box fitting, Quick lock, Dowel pins

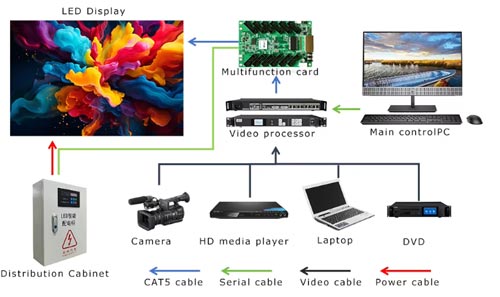

The P2.5 LED display provides one-stop playback, allowing cameras, 888 video processors, high-definition media players, laptops, main control PCs, and DVD players to play videos and images on the LED screen, improving work efficiency, providing stable service, and controlling quality.

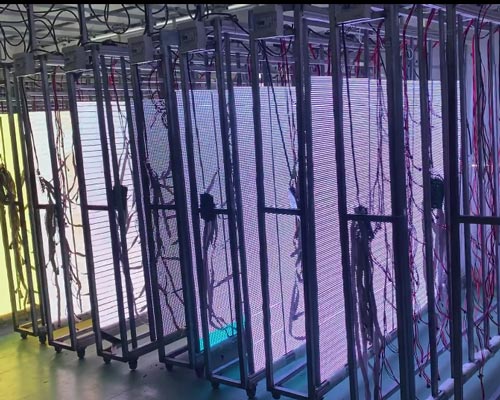

P1.25 LED module product pulses load test for 12 hours to ensure that each product that goes out of the door is of high quality, high reliability, high impact resistance, good Flatness, and low rate of defects. It is self-developed and has produced a multi-layer strengthened bottom shell, Not easy to deform.
Detailed Specifications of Indoor Full-Color P2.5 LED Display | |
Model No. | P2.5 |
Pixel Pitch | 2.5mm |
Module Size | 160*160mm |
Pixel Density | 160000 |
Pixel composition | smd2020 |
Module Resolution | 64*64 |
The Optimum Viewing Distance | 1~12m |
The Optimum Viewing Angle | H:140° V:120° |
Maximum Power Consumption | 800W/m2 |
| 640mm*1920mm |
Cabinet Weight | 30Kg |
Driving Method | 1/32 Scan |
Frame Frequency | ≥60Hz |
Refresh Rate | ≥1920Hz |
White Balance Luminance(CDm2) | ≥1500CD/m2 |
Operating Environment Temperature | between -20°C and 60°C |
Operating Voltage | 220V±10% |
Grey Scale | Display Colors≥65.7trillion |
Brightness Adjustment | 1024 grades of each |
Input Signal | RF, S-Video, RSBHV, YUV, YC, COMPOSITION |
Control System | PC+DVI display |
Average No Failure | ≥1000 hours |
Time Life-span | >100000 hours |
Out-of-Control rate | <0.0002 |
Transmitting Distance | Internet cable:<100m |

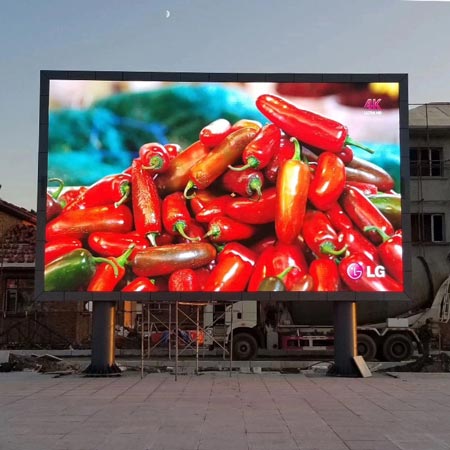

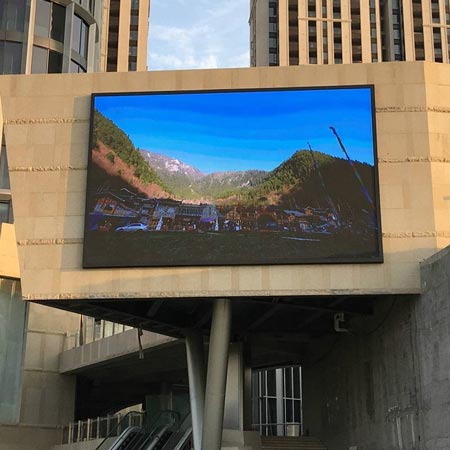

Not recommended. P2.5 LED displays are generally suitable for indoor use. 1. The brightness of P2.5 LED displays is more suitable for indoor lighting. 2. P2.5 LEDs are not as waterproof or dustproof outdoors; direct exposure to the outdoors can damage the circuitry.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Shenzhen Topview Display Technology Co., Ltd. is a leading LED display manufacturer in China. If you need an excellent LED display factory, Topview Led Display is your first choice. Please send us your detailed requirements so we can provide you with a quote immediately.
