Church LED displays are high-definition digital display devices designed for use during church services.
Church LED displays have become an indispensable tool for facilitating seamless communication with congregants during worship.
Compared to traditional projection equipment, LED displays offer the advantage of high brightness, providing congregants with clear and stable visuals even in brightly lit environments.
They can synchronize song lyrics with Bible verses during services.

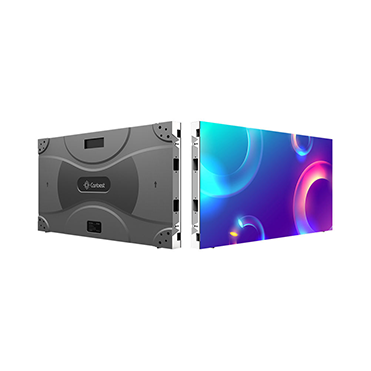

Cabinet dimensions: 600 × 337.5 mm
Suitable for indoor church events; portable and durable

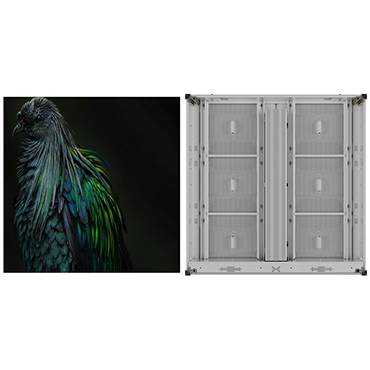

Cabinet dimensions: 500 × 500 mm
IP65-rated, suitable for outdoor church events; resistant to high and low temperatures and highly waterproof

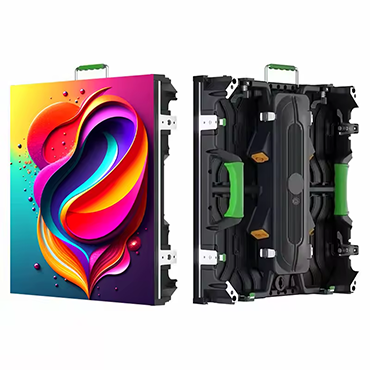

Cabinet dimensions: 500 x 500 mm
IP65-rated, suitable for large-scale events in churches; portable and disassemblable
Topview uses a fanless and passive cooling design to eliminate the mechanical noise while the church members are chanting, praying and meditating in their holy moment, 3840Hz hight refresh rate bring the power on live stream. The only good thing is to eliminate the waves when you're shooting with phone or professional camera.
Topview manufactures LED screens for churches, featuring a 160-degree ultra-wide viewing angle. Whether worshippers are seated in the center of the main sanctuary, in the side aisles, or in the back rows, the image quality and color consistency remain the same. With a magnetic module design, even non-technical personnel can replace modules in under five minutes.
Pixel Pitch | 1.95mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm |
Lamp Types | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
Scan | 1/8s | 1/16s | 1/16s | 1/28S | 1/16s |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
Module Resolution(Pixels/pcs) | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 |
Module weight(kg) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
Module flame retardant rate | V0 | V0 | V0 | V0 | V0 |
Cabinet size(mm) | 500*1000 | 500*1000 | 500*1000 | 500*1000 | 500*1000 |
Cabinet resolution(Pixels/pcs) | 256*512 | 200*400 | 192*384 | 168*336 | 128*256 |
Cabinet Weight(kg) | 15±5% | 15±5% | 15±5% | 15±5% | 15±5% |
Per cabinet Module quanity(pcs) | 8 | 8 | 8 | 8 | 8 |
Pixel density(Pixels/m²) | 262144 | 250000 | 147456 | 112896 | 65536 |
Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
Real Brightness(cd/m²) | 1000 | 1200 | 1200 | 1200 | 1200 |
Grey grade | 16bit | 16bit | 16bit | 16bit | 16bit |
Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
Input Voltage | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz |
Power Consumption(Max.W/m²) | 560 | 560 | 560 | 560 | 560 |
Power Consumption(Ave.W/m²) | 280 | 280 | 280 | 280 | 280 |
IP rating(Front/Rear) | IP55 | IP55 | IP55 | IP55 | IP55 |
Operating temperature | -20℃ ~ +45℃ | -20℃ ~ +45℃ | -20℃ ~ +45℃ | -20℃ ~ +45℃ | -20℃ ~ +45℃ |
Lifespan (Hrs) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |

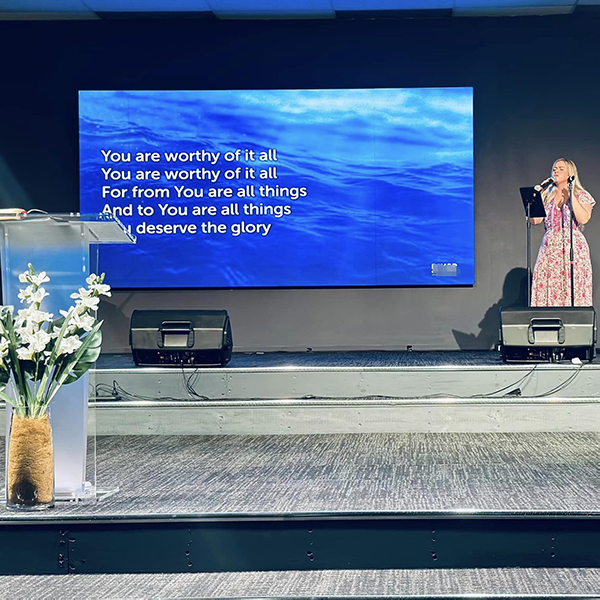

With its high brightness, the LED display overcomes ambient light interference; its high refresh rate ensures flicker-free live streaming; and its seamless splicing creates an immersive worship atmosphere in the main sanctuary. Additionally, it is quiet, durable, and easy to maintain, making it the “heart” of the church's digital transformation.
Outdoor church LED screens clearly display event announcements and welcome messages even in direct sunlight, attracting passersby and enhancing community outreach. They are the top choice for digital signage on church exteriors.
Topview’s LED event screens are particularly well-suited for large-scale holiday services at churches (such as Christmas and Easter). Featuring a floor-standing modular design, quick-assembly structure, and ultra-high refresh rates, these T0-grade LED screens support live broadcasting and stage effects, instantly energizing the worship atmosphere and enhancing the congregants’ experience.

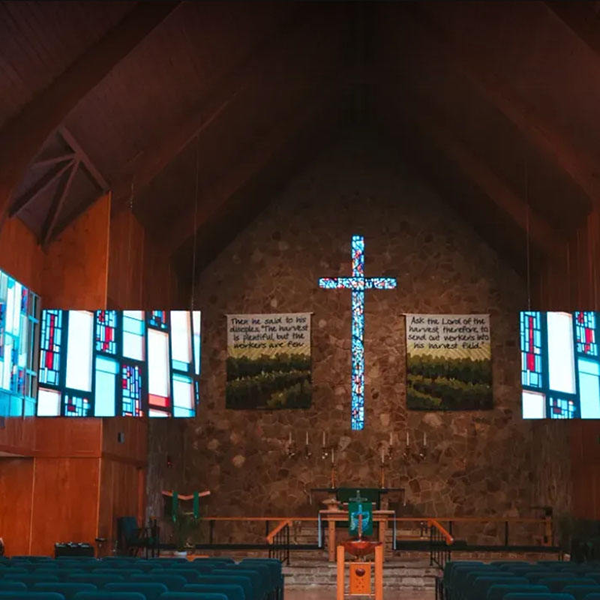

An LED screen is installed at the back of the church to eliminate blurriness and obstructed views for those sitting in the back rows. High-resolution displays of song lyrics and sermon footage allow congregants in the back rows to follow along with those in the front, ensuring that everyone is included in the service.
The Topview church auxiliary LED screen features a 160° ultra-wide viewing angle, effortlessly resolving visibility issues for those seated on the sides. By simultaneously displaying lyrics and live footage in 4K resolution, it ensures that every worshipper in the sanctuary enjoys a clear and seamless worship experience.
First: In case of malfunction, the entire product must be disassembled from a height, and the display screen must be opened for repair. This incurs disassembly, hoisting, and labor costs.
Second: The product debugging process is cumbersome. Customers may misadjust parameters, leading to abnormal display. This requires long-term remote technical support or on-site troubleshooting, resulting in a lengthy process and impacting usability.
Third: The church is a century-old building with issues such as aging wiring, messy cabling, and voltage fluctuations. This not only results in poor stability for the display screen but also poses safety hazards.
Fourth: The cross-shaped display screen has low brightness (3000mcd). Even during the day, the display is unclear when viewed from a distance. Many products use ordinary sheet metal enclosures, which are prone to rusting outdoors, further shortening their lifespan and increasing risks.
TOPVIEW LED: 15 Years of Outdoor Display Screen Manufacturing Experience
1. Modules can be disassembled from the front. Problematic modules can be removed from the front of the screen without disassembling the entire unit.
2. Dedicated software for the cross-shaped display screen simplifies the operation process. Customer misoperation leading to settings confusion can be quickly corrected through the software.
3. Mean Well power supply, UL certified.
4. Wide voltage input, adaptable to voltage fluctuations, preventing tripping or equipment damage.
5. Custom-designed high-brightness LEDs, achieving a total screen brightness of 8000mcd. Content remains clear and bright even during the day and at a distance.
6. The enclosure is made of hot-dip galvanized material. Improved rust resistance. Suitable for long-term outdoor use, extending product lifespan and reducing the safety risks associated with rust.
The price of church LED display screen varies from size, resolution, type, and cabinet options, there customized price, for occasional use situation, renting a screen is an affordable choice.
P1.8 - P2.0: Suitable for small to medium-sized chapels; provides a smooth, grain-free image even when viewed up close.
P2.5: The mainstream choice for churches, offering both clarity and value for money.
Topview Recommendation: If the front row of congregants is approximately 2.5 meters from the screen, P2.5 is the optimal choice.
YesTopview is designed with full front maintenance magnet adsorption if a module fails, you can replace it from front with professional magnetic tool, the whole process less than 5 minutesNo need to remove the big screen background, and very much friendly to volunteers and non technical persons.
Yes, we have experience in this field, and our factory showroom also has displays. You are welcome to visit our factory.
After you place your order, we will quickly process it, and the production cycle is approximately 10-15 days.
Shenzhen Topview Display Technology Co., Ltd. is a leading LED display manufacturer in China. If you need an excellent LED display factory, Topview Led Display is your first choice. Please send us your detailed requirements so we can provide you with a quote immediately.
