Stadium LED Display

Features of stadium LED screens

e24841d3d997198037770737800250e7
5e5b59438be04041c3fbccf0e3bd5682
8cea2012a698b51ac09e33bbe8cecd2e
646fefbdbd796abe97179bbd65d4b63d

Operational scenarios of LED sports equipment

3e170ce0b8cf4f11d3521ff9cabfbc52

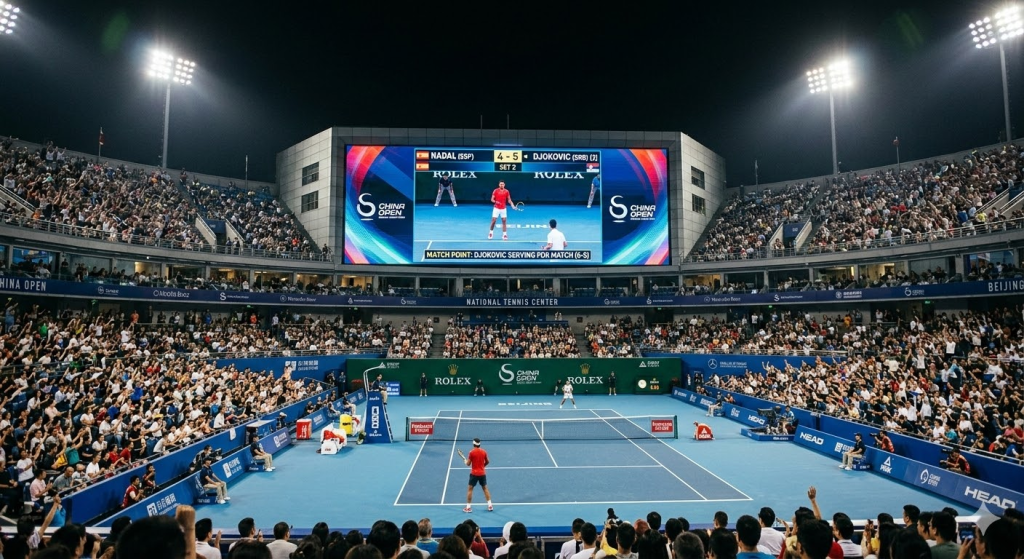

LED screen for tennis events

System roll rate for the LED screen for tennis events is usually high and the high contrast will allow really good visibility of the scores, hawkeye replays and sponsor’s advertisements. Its modular design fits for stadium fence or high altitude hanging, along with high protection grade to keep stability in strong light or rainy day, which boosts visual impact on spot.

94a1bf4c326451d93506f268b6e175c0

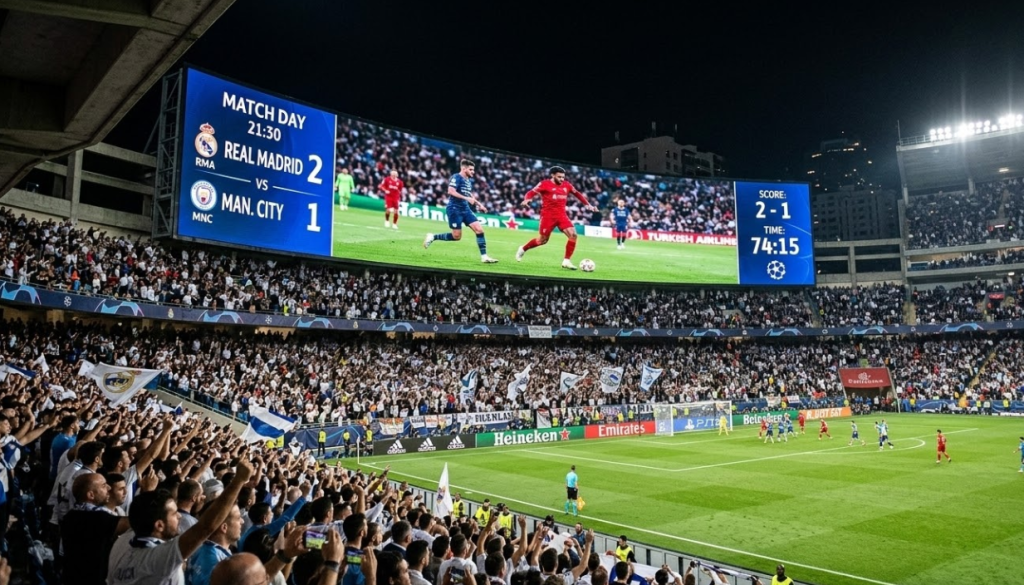

Football event LED screen

Court Giant Screen LED: high refresh and brightness, HD play of goals, real-time scores, super visual effects, bring on the heat in the court!

dd7d97003fbeb09b2e6a48875bea397d

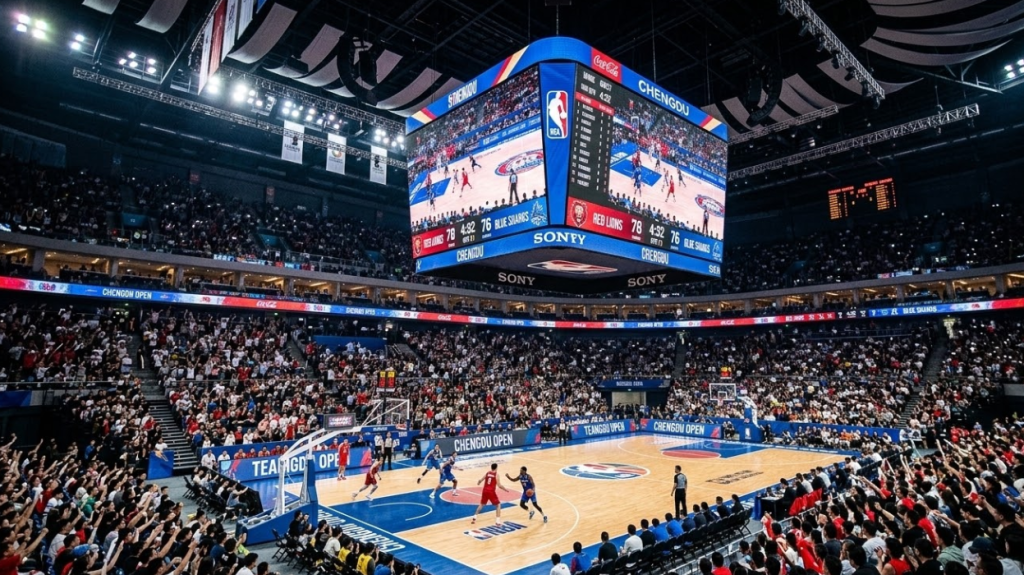

Basketball game LED screen display

360° all-around viewing with no blind spots, high-definition real-time scores, and stunning replays, creating an NBA-level viewing experience.

Product Parameters

Model P4P5P8
Pixel Pitch4mm5mm8mm
Color Configuration SMD 3in1 1R1G1B
Module Size320 x 160mm
Module Resolution80 × 40dots64 x 32dots40 x 20dots
Cabinet Size640mm x 640mm/960mm x 960mm or customized
Driver Mode1/10 Scan1/8 Scan1/5 Scan
Cabinet MaterialIron or Die cast aluminum
Brightness4000-7000cd/㎡
Max Power Consumption1200W/㎡
Average Power Consumption400W/㎡
Refresh Rate1920Hz/3840Hz
Grey Level16Bit
CertificationsCE, ROHS, ISO9001

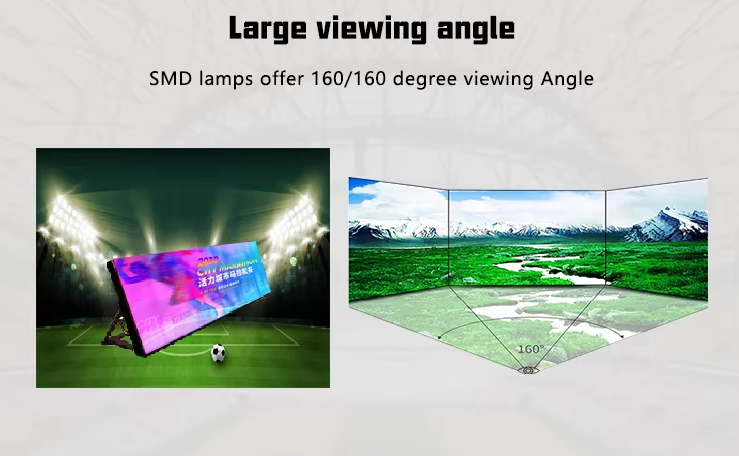

View AngleHorizontal 140° Vertical 140°
Screen Control MethodPC or Mobile Phone
IP RatingIP65
Input VoltageAC110V-220V,50Hz-60Hz
Temperature-operating-10℃-60℃
Life Span
bcd14cd31c998b1f8ddda7144bdc683b
09716cb6e2cf51f812381edf61d34a0c

Customer Reviews

FAQ

What are the differences between stadium display screens and regular outdoor display screens?

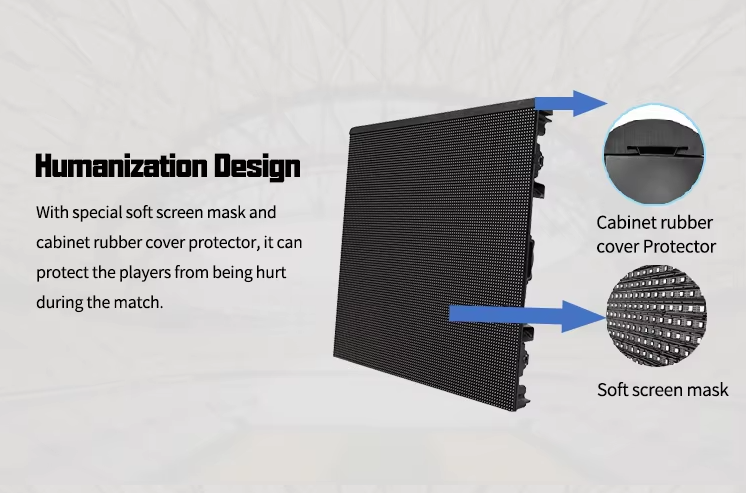

The biggest difference is the protective design. Stadium screens typically have a soft cover and a protective pad at the top. This is to prevent players from running off the field and hitting the screen, which could result in serious injury, and also to protect the LED chips from damage caused by objects such as balls.

Sporting events are typically broadcast live or recorded by professional cameras. A refresh rate of 3840Hz or higher is necessary to ensure flicker-free, scanline-free images on camera, guaranteeing that the picture seen by television viewers is as clear as if they were at the stadium.

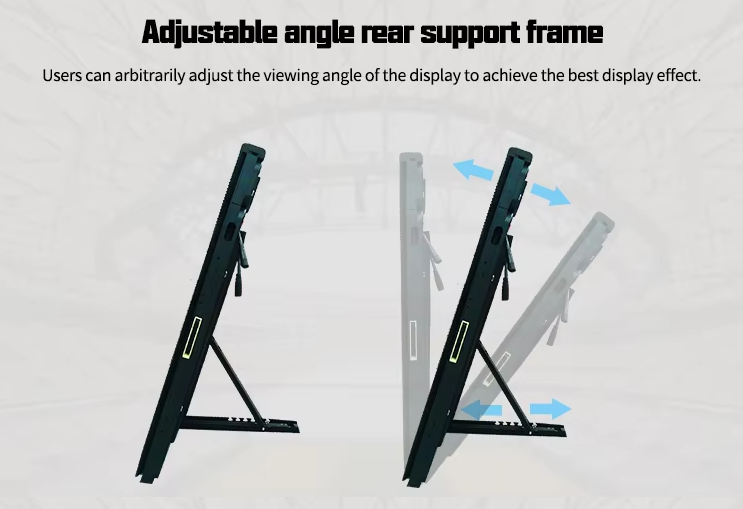

Yes. Quality fencing screen support structure design usually allows for 60° - 90° angle adjustment to make sure each fan in the stands as well as the field broadcast camera will have the best viewing angle.

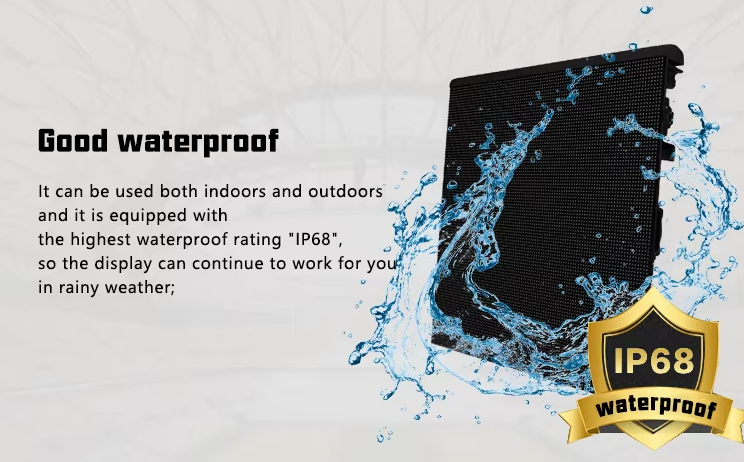

Outdoor screens must have an IP65 or higher protection rating. In addition, to cope with extreme high temperatures, the screen should have a built-in high-efficiency heat dissipation system and a UV-resistant design to prevent the shield from yellowing or deforming under intense sunlight.

The theoretical life of optional LED chips is 100,000 hours (about 11 years) in standard working environment; however, the actual life span was influenced by outdoor environment, stability of electricity and maintenance.
