Topview Display provides the indoor led display solutions and video wall solution for all kind of space.
Indoor High-definition LED displays Consistent quality . Are you in need of a trusted indoor led display manufacturer?
We support OEM & Wholesale. Start your LED display distribution journey today!
Pixel pitch (mm)：P0.9 / P1.2 / P1.5 / P1.8

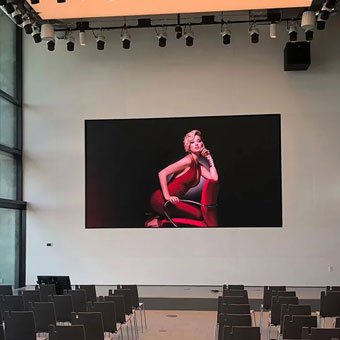

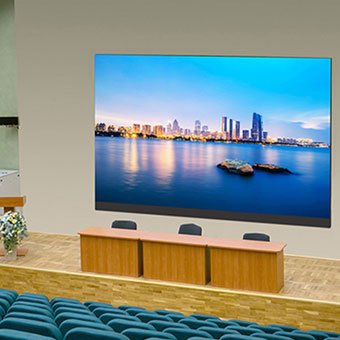

Suitable scenarios:High-end meeting rooms, command centers, exhibition halls
The smaller the pixel pitch, the finer the image quality, making it suitable for close-range viewing, but the cost is also higher.
Pixel pitch (mm)：P2 / P2.5 / P3

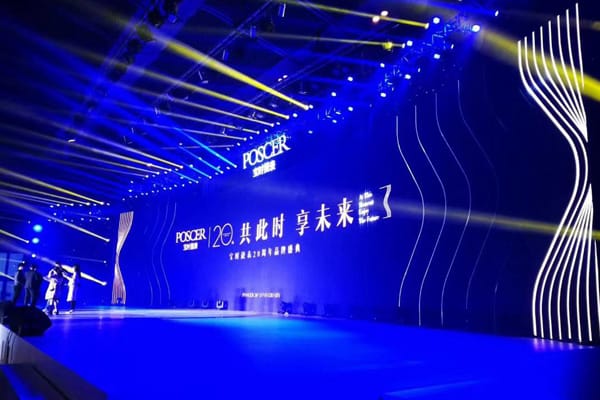

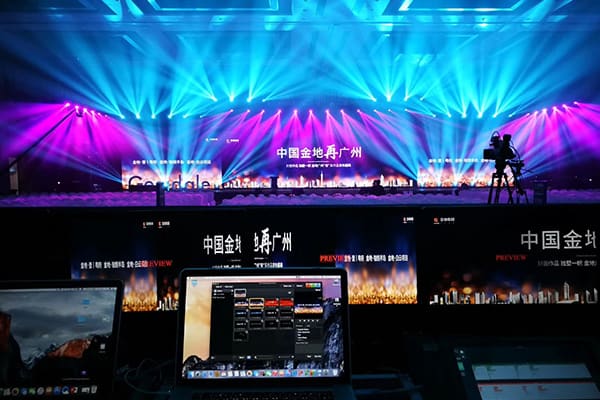

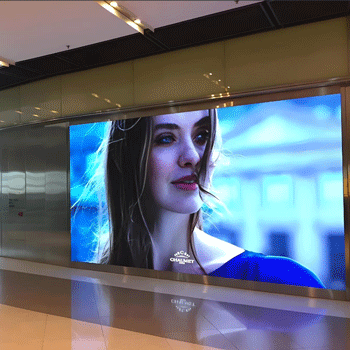

Suitable scenarios:Shopping mall advertisements, stage backdrops, lobby screens
The smaller the pixel pitch, the finer the image quality, making it suitable for close-range viewing, but the cost is also higher.
Pixel pitch (mm)：P3.9 / P4.8
Suitable scenarios:Basic display and general advertising purposes.
The smaller the pixel pitch, the finer the image quality, making it suitable for close-range viewing, but the cost is also higher.
Supported by a team of professional experts.
From initial planning to final installation, our team will be with you every step of the way, ensuring a seamless experience.
Highly competitive prices
Get high-quality indoor displays at highly competitive prices, delivering exceptional performance without exceeding your budget.
cutting-edge technology
Enjoy clear, sharp images and superior performance with the latest indoor LED display technology.
Customized solutions
We customize LED panels based on your unique space, brand, and business needs.
We offer comprehensive and customizable indoor LED display solutions.
We can flexibly customize screen parameters and dimensions based on your specific application scenarios, installation space, and budget requirements, ensuring a truly tailored and precise fit for your needs.
LED display screens support DIY creative design, allowing for free splicing and customization based on space structure and display requirements.

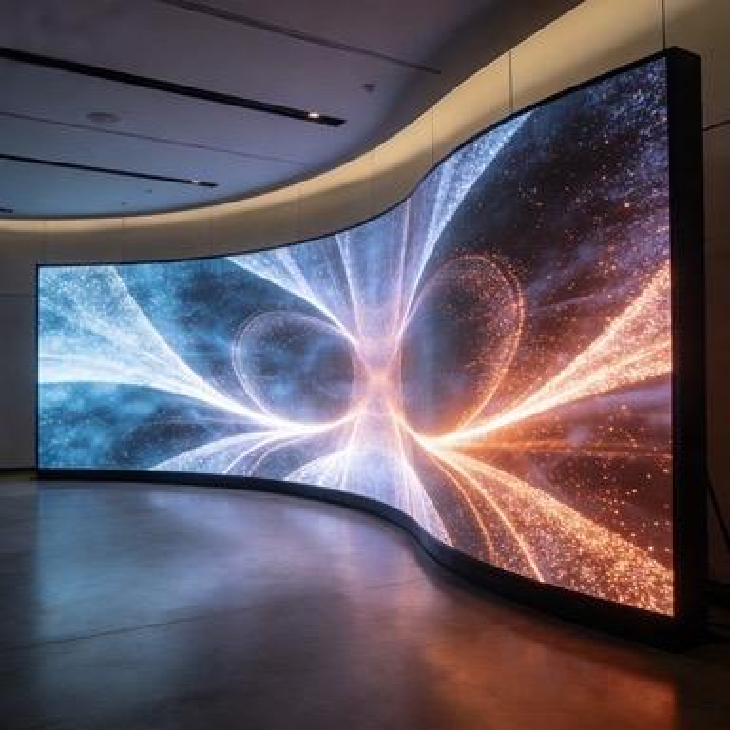

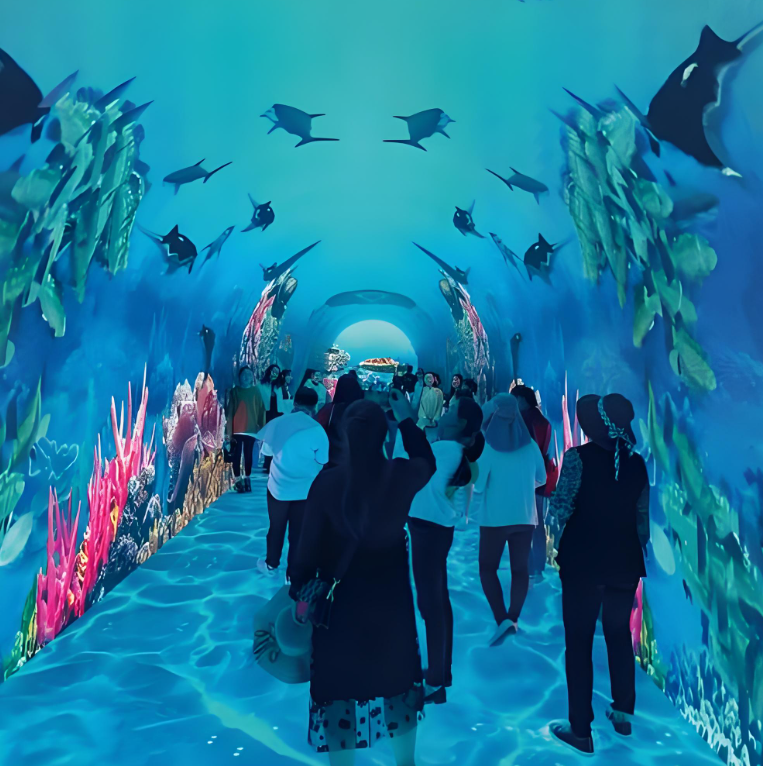

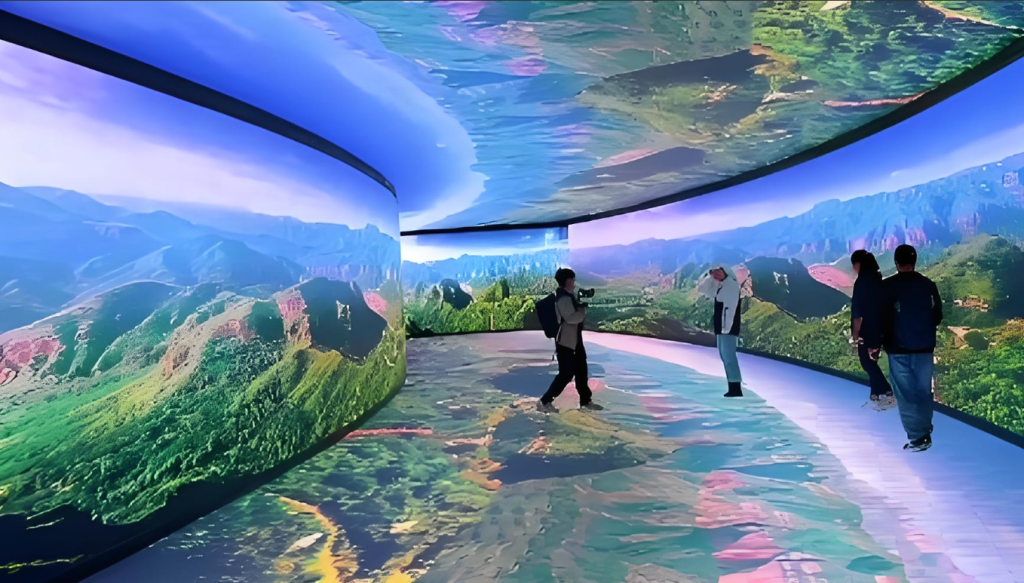

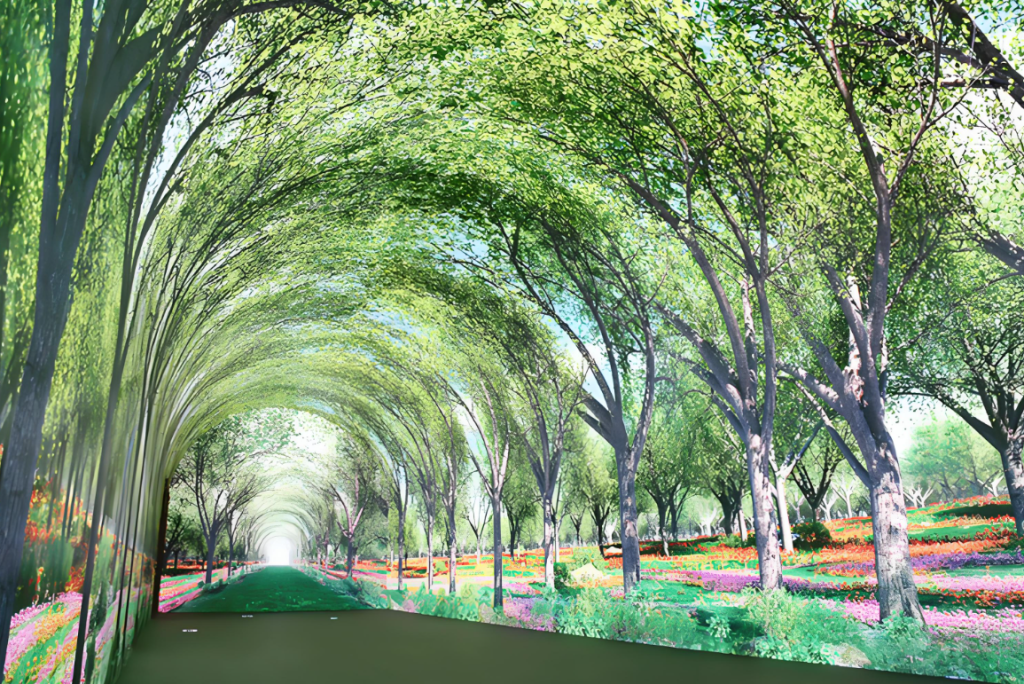

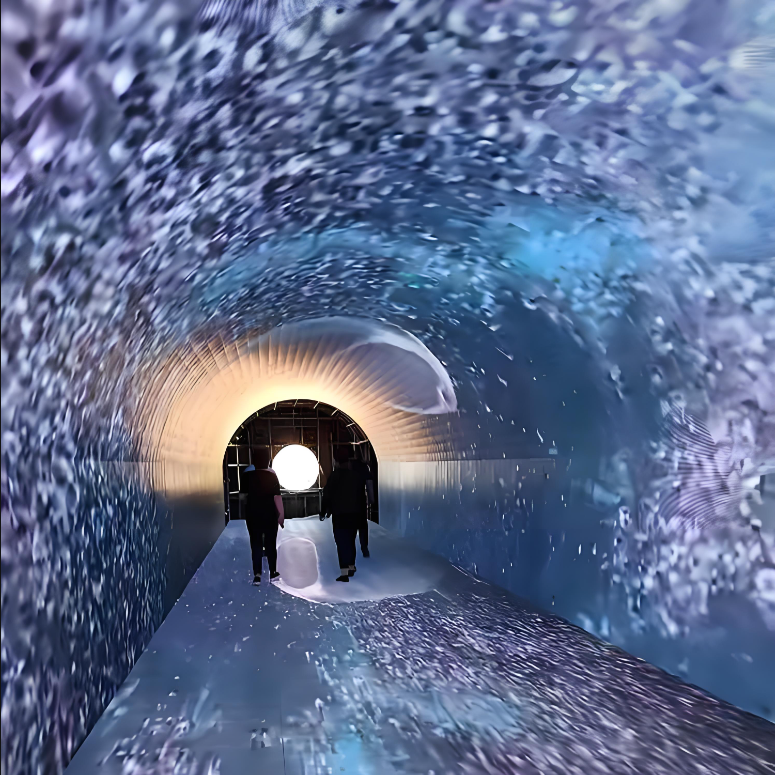

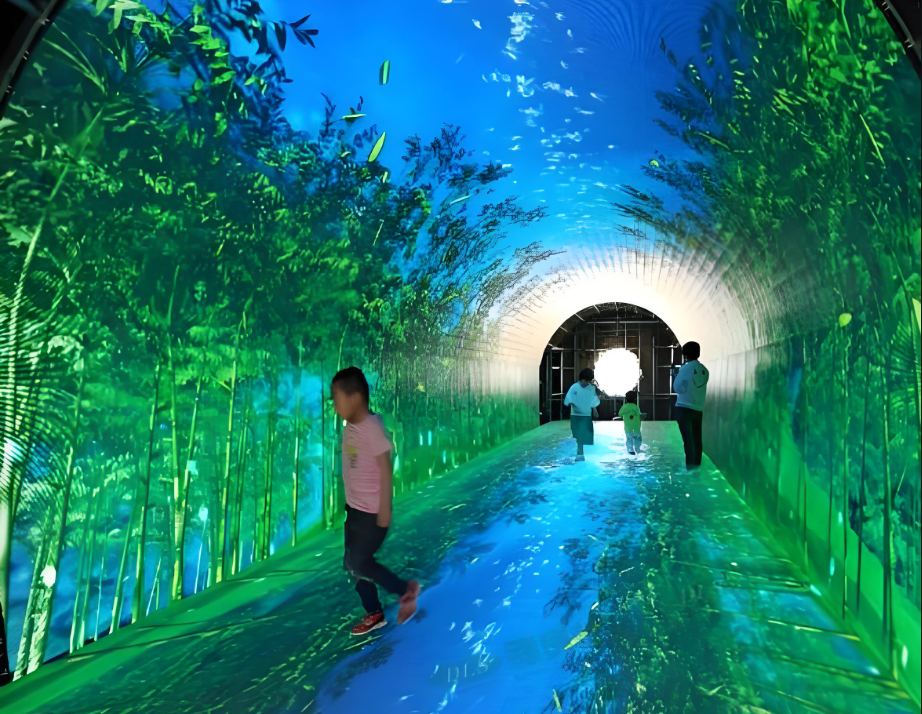

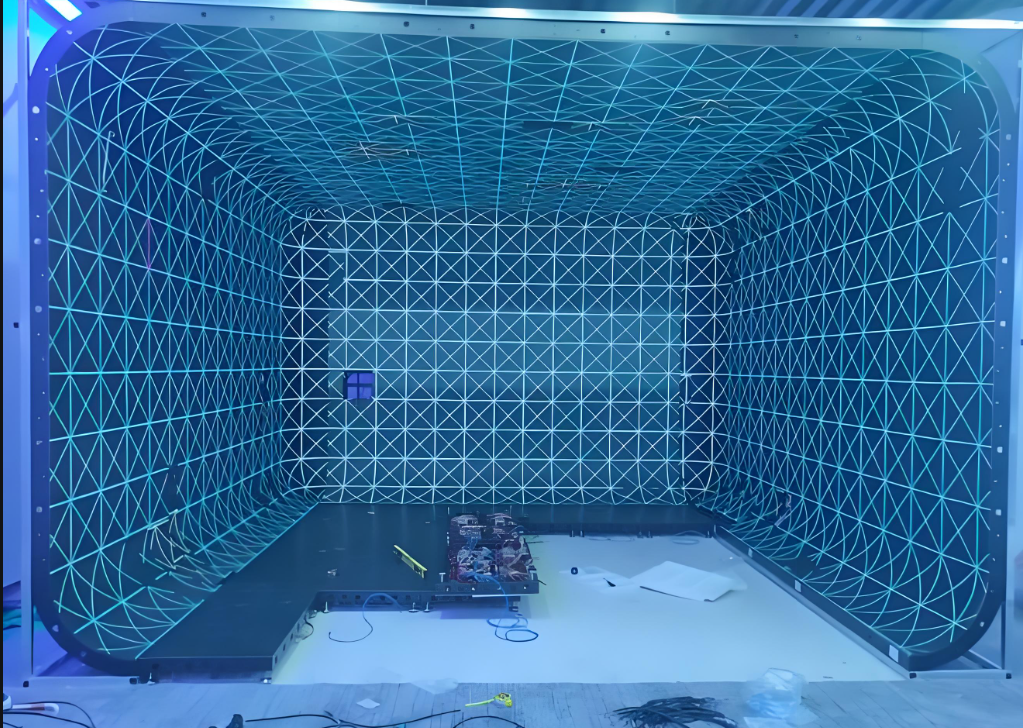

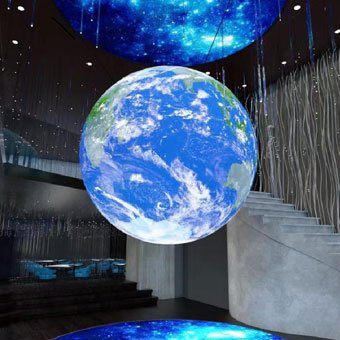

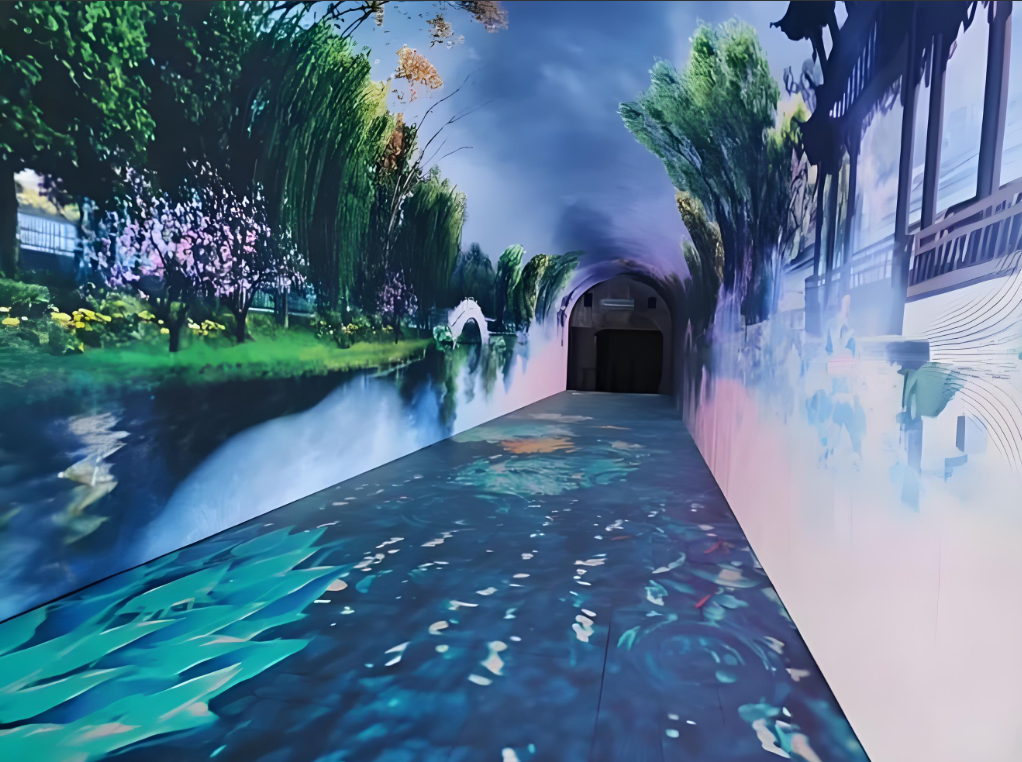

Through modular and flexible technology, they can create curved, circular, columnar, wave-shaped, and various other irregular structures, freeing the display screen from the limitations of a flat surface.
This not high-definition display effects but also offers aesthetic appeal, easily creating unique and eye-catching visual highlights for any space.

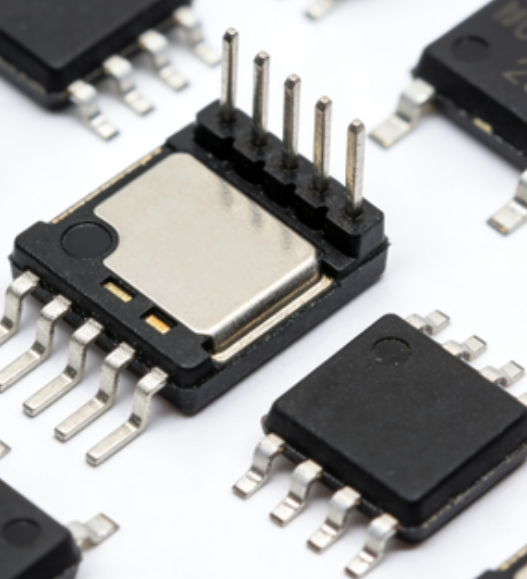

SMD LED

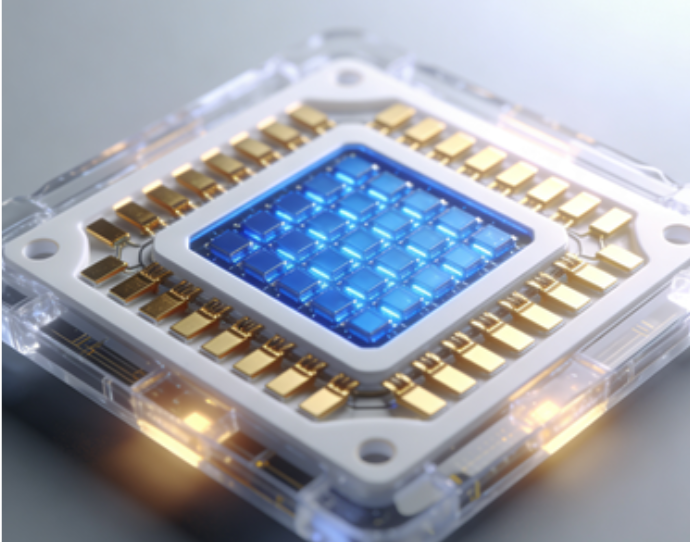

COB LED

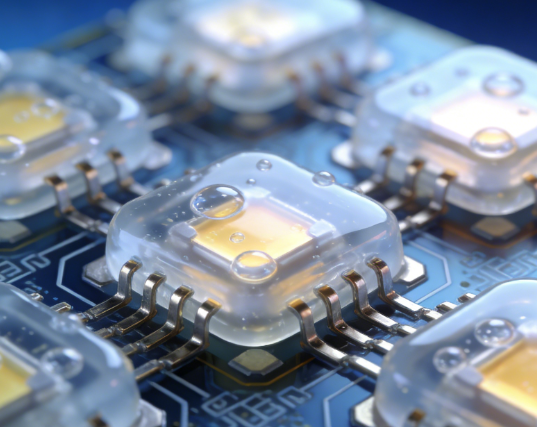

GOB LED
DIP LED
Suitable for advertising, informing and improving brand image, featured with high resolution, high brightness and wide viewing angle and support long distance watching clearly, can maximize the propagation effect of business space and the guide efficiency of the flow for people.
Equipped with functions such as train information dissemination, advertising display, and passenger guidance, it delivers high-brightness, high-definition visuals visible from a distance. The system supports dynamic information updates, thereby enhancing the station's level of information-based management and the quality of passenger services.

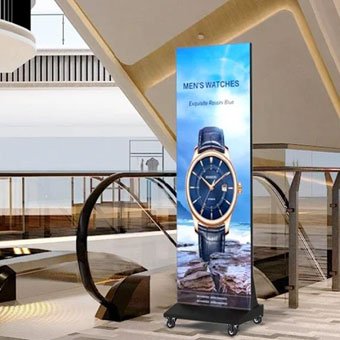

Ideal for use in supermarkets, convenience stores, and brand counters, this device features a high-definition display that clearly presents product prices and promotional information. Boasting high brightness, energy efficiency, and a long lifespan, it supports remote content updates—thereby increasing product visibility and enhancing the customer shopping experience.

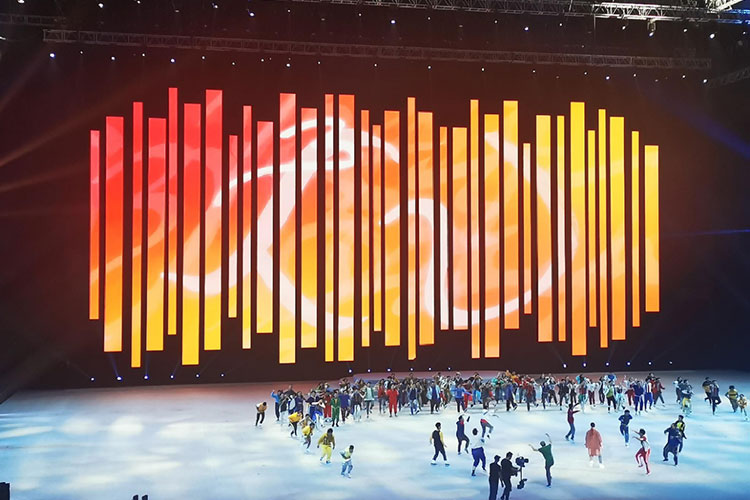

This large, high-definition screen is specifically designed for church performances and religious events; it simultaneously displays lyrics, biblical passages, and live video feeds with exceptional clarity. Boasting ample brightness and a wide viewing angle, it effectively enhances the audience's immersive experience.
Application for international trade show & fair display factory and corporate exhibitor, product video and brand anagement in hd, the images are clear and color is bright. Support customized size and creative shape, improve the stick booth attraction and Brand exhibitor.

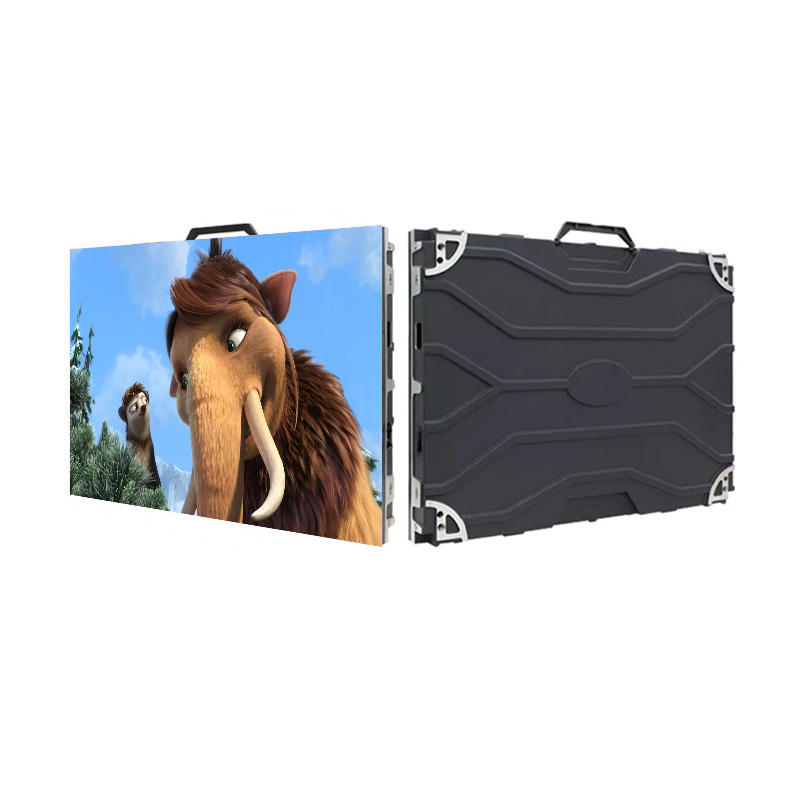

| Model | P1.56 GOB | P2 | P2.5 | P2.6 | P2.9 | P3 |
|---|---|---|---|---|---|---|
| Usage | Indoor | |||||
| Cabinet Size(mm) | 600*337.5 | 960*960 | 960*960 | 500*500 | 960*960 | 960*960 |
| Cabinet Resolution (dot) | 384*216 | 480*480 | 384*384 | 192*192 | 160*160 | 120*120 |
| Scanning | 1/48S | 1/40S | 1/32S | 1/32S | 1/28S | 1/32S |
Packaging Technology | SMD | |||||
| Installation | Front/Back | |||||
| Density(dot/㎡) | 409600 | 250000 | 160000 | 147456 | 112896 | 111111 |
| Brightness(cd/㎡) | 600 | 800 | 800 | 800 | 800 | 800 |
| Max. Power Consumption(W) | 600 | |||||
| Average Power Consumption(W) | 200 | |||||
| Cabinet Weight (kg) | 9 | 13 | 13 | 7.5 | 7.5 | 13 |
| Cabinet Material | Iron/Aluminum | |||||
| IP Rate | IP54(Front) /IP31(Rear) | IP54(Front) /IP31(Rear) | IP54(Front) /IP31(Rear) | IP31 | IP31 | IP31 |
| Grayscale | 10000:1 | |||||
| Refresh Rate(hz) | 3840 | |||||
| Frame Change Frequency | 50/60Hz | |||||
| Horizontal Viewing Angle | ＞140° | |||||
| Vertical Viewing Angle | ＞140° | |||||
| Best Viewing Distance | >1.5m | >2m | >2.5m | >2.6m | >2.9m | >3m |
| Input Voltage | AC110-220V | |||||
| Temperature-operating | ﹣10℃～60℃ | |||||
| Humidity-operating | 10%～90% | |||||
| Life Span (H) | ≥100,000 | |||||
| MTBF (H) | >10,000 | |||||

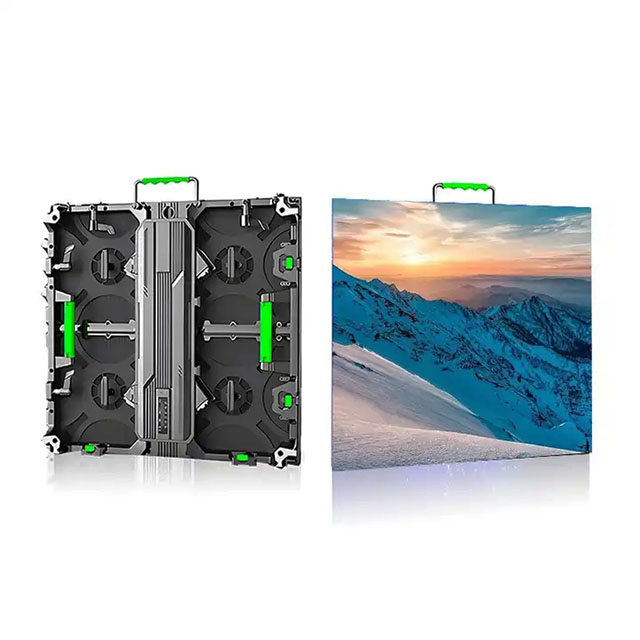

| Model | P3.91 | P4 | P4.81 | P5 | P6 | P10 |
|---|---|---|---|---|---|---|
| Usage | Indoor | |||||
| Cabinet Size(mm) | 500*500 | 960*960 | 500*500 | 960*960 | 960*960 | 960*960 |
| Cabinet Resolution (dot) | 128*128 | 240*240 | 104*104 | 192*192 | 160*160 | 96*96 |
| Scanning | 1/16S | 1/20S | 1/13S | 1/16S | 1/16S | 1/8 |
| Packaging Technology | SMD | |||||
| SMD | Front/Back | |||||
| Density(dot/㎡) | 65536 | 62500 | 43264 | 40000 | 27777 | 10000 |
| Brightness(cd/㎡) | 800 | |||||
| Max. Power Consumption(W) | 800 | 600 | 800 | 600 | ||
| Average Power Consumption(W) | 400 | 200 | 400 | 200 | ||
| Cabinet Weight (kg) | 9 | 13 | 13 | 7.5 | 7.5 | 13 |
| Cabinet Material | Iron/Aluminum | |||||
| IP Rate | IP31 | |||||
| Grayscale | 10000:1 | |||||
| Refresh Rate(hz) | 3840 | |||||
| Frame Change Frequency | 50/60Hz | |||||
| Horizontal Viewing Angle | ＞140° | |||||
| Horizontal Viewing Angle | ＞140° | |||||
| Best Viewing Distance | >3.9m | >4m | >4.8m | >5m | >6m | >10m |
| Input Voltage | AC110-220V | |||||
| Temperature-operating | ﹣10℃～60℃ | |||||
| Humidity-operating | 10%～90% | |||||
| Life Span (H) | ≥100,000 | |||||
| MTBF (H) | >10,000 | |||||

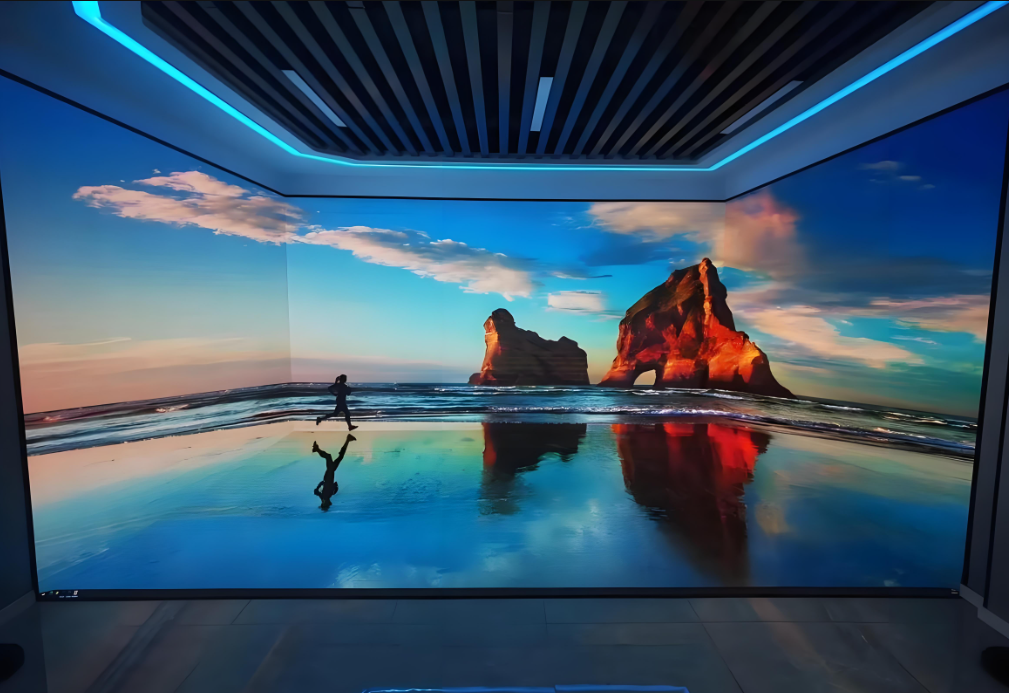

Indoor LED screen is a digital screen device with high definition specially for indoor application, it has a high resolution, high refresh rate and can splicing seamlessly. They are also popular for use in meeting rooms, shopping centers, exhibition centers, command centers and stage backgrounds.
Typical installation method is as follow：
Wall mounting
Recessed installation

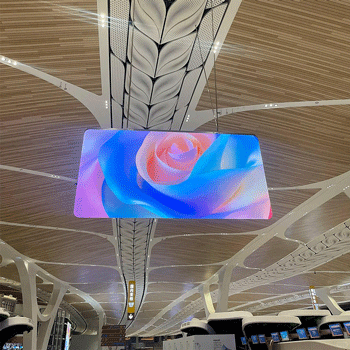

Suspended installation

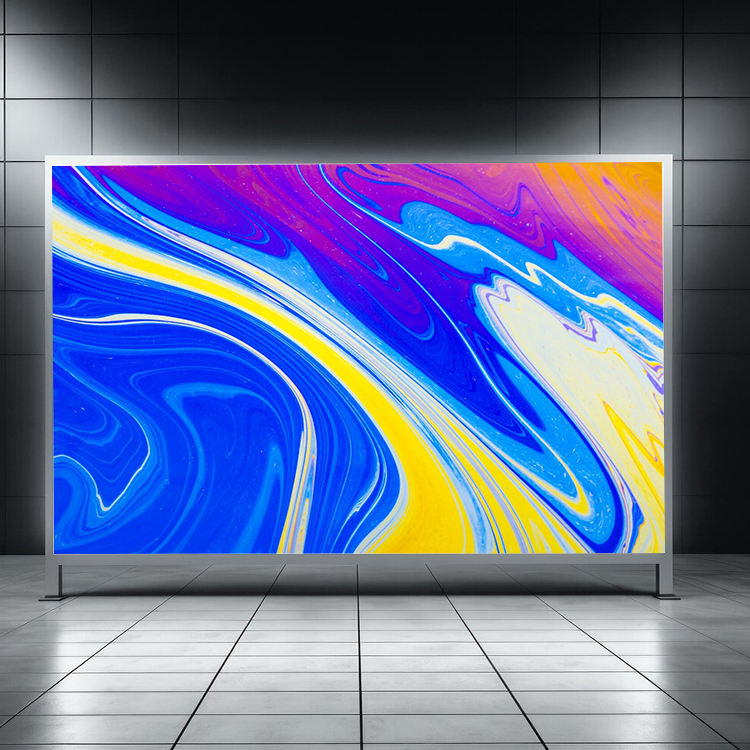

Floor stand installation
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Indoor LED screen can be customized in all aspects, such as non-standard size, irregular shape and creativity design, which are highly supportive for brand displays and commercial spaces.
SMD, COB, and GOB LED screen for indoor usage
Connected: Content on the display can be managed remotely and play on command through a PC or Network System.
High-end LED displays provide stability; if a single LED goes out, maintenance can be carried out on the module level, rather than replacing the whole screen.
The uniform design has made assembly a relative breeze and the engineering is usually done by the pros so you can be sure they know what they're doing and that the results will be safe and spot-on.
Pixel density, packaging format, refresh rate and brand influence the price, which can be from a few tens of dollars to thousands of dollars per square meter.
