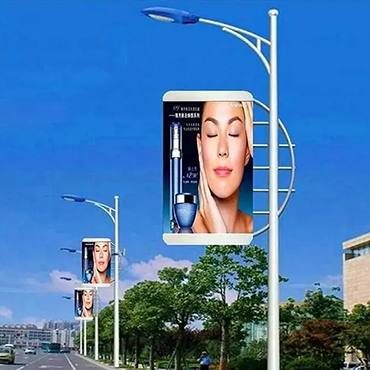

Topview Smart Light Pole LED Screens feature dual-sided HD displays and support 5G cluster control. Direct from the manufacturer—and built to be waterproof and sun-resistant—they empower urban roadways to achieve digital, intelligent connectivity.

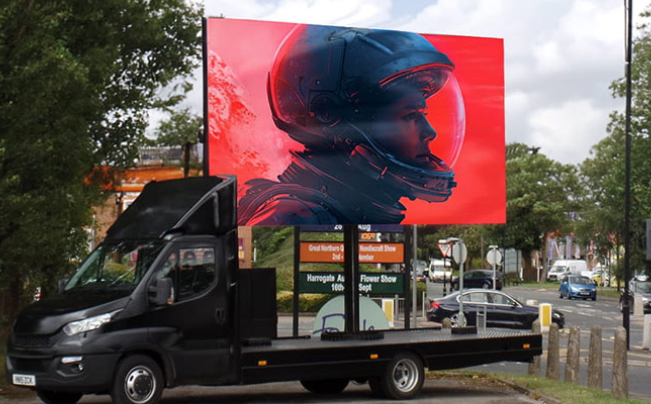

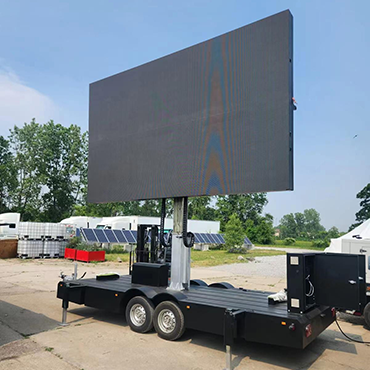

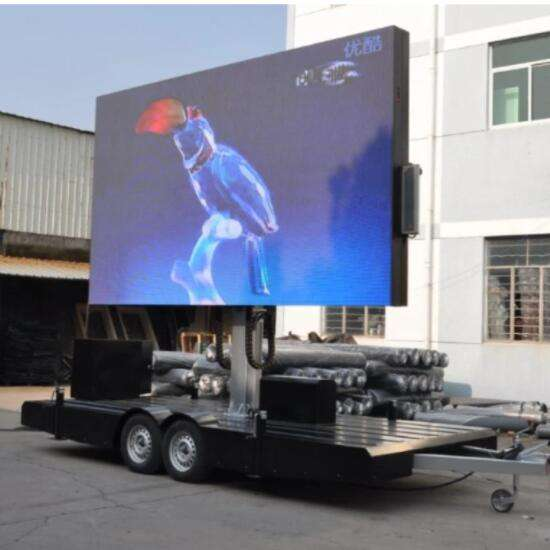

Topview mobile LED advertising vehicles are equipped with high-definition, high-refresh-rate screens, enabling instant parking and playback. One-button centralized control makes them ideal for outdoor roadshows and event promotion.

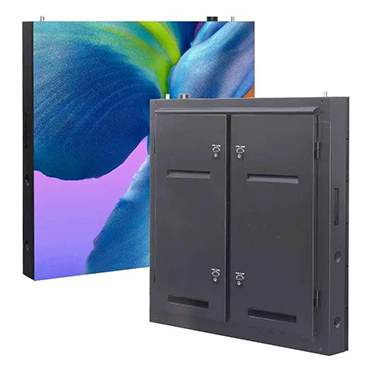

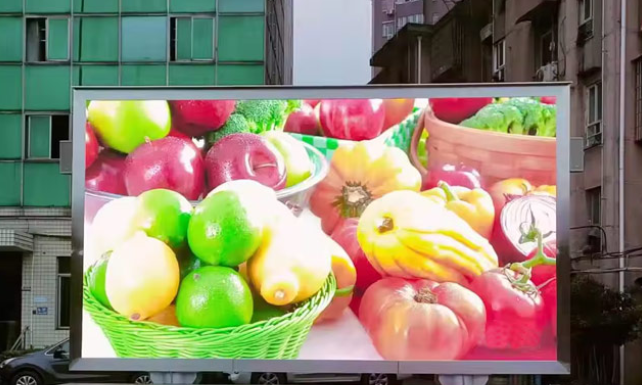

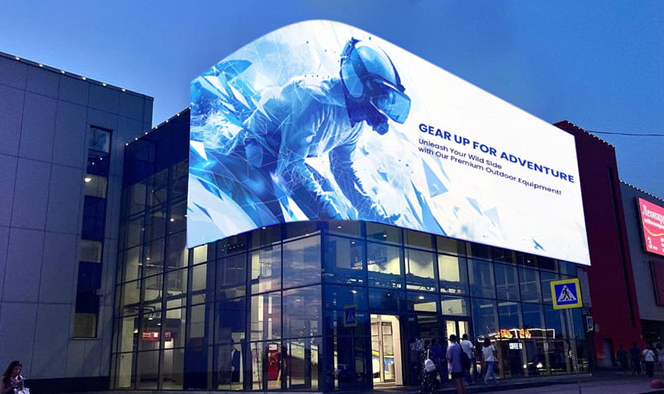

Topview fixed outdoor LED screen, IP65 waterproof, stable and durable. Factory direct sales of full-color high-definition screens, perfectly suited for shopping mall facades/landmark buildings.

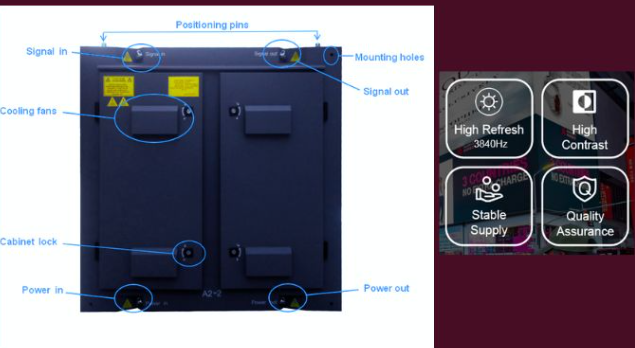

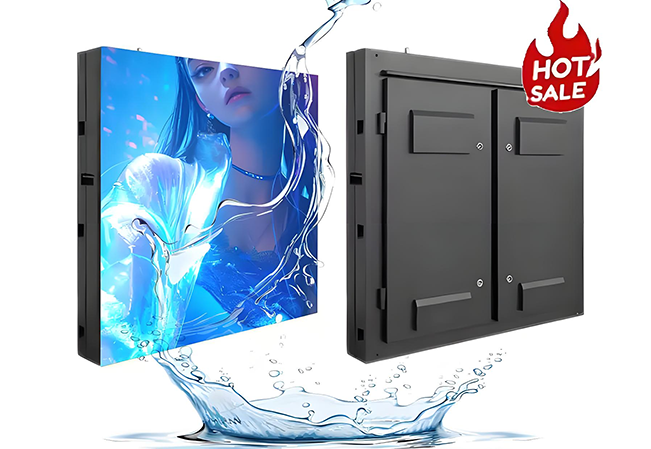

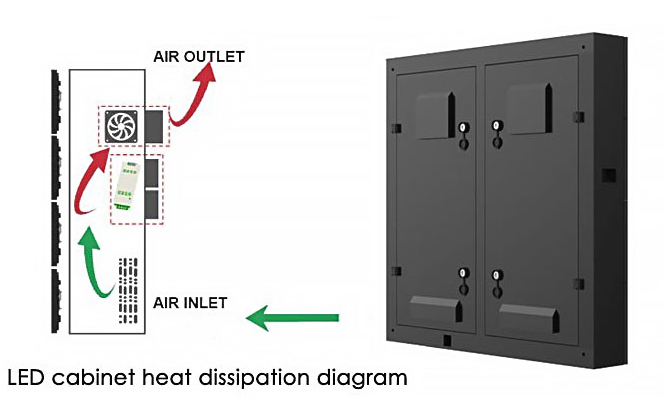

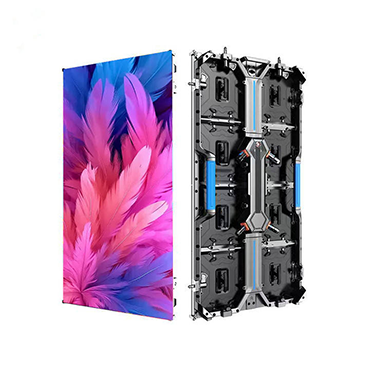

High protection design, dustproof, waterproof, and leak proof, with IP65 rating atthe front and back. The box is specially equipped with a water channel, and thepanel is covered with adhesive to ensure worry free circuit modules

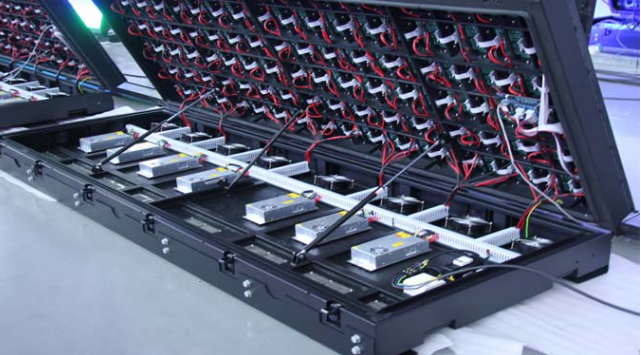

This is a specially designed LED core piece, which can be used for 24 hours every day, 365 hours a year. Now we can use new technology to improve the performance of the LED display.

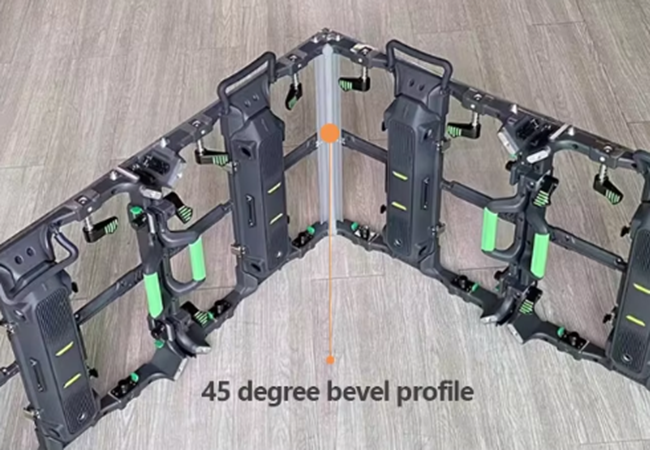

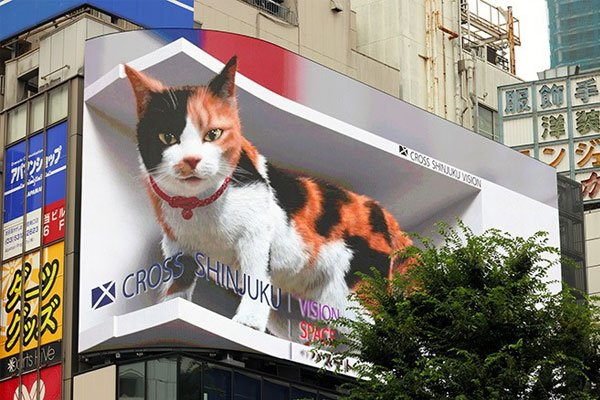

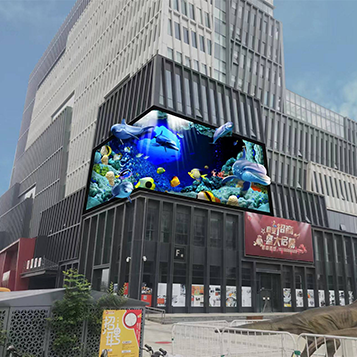

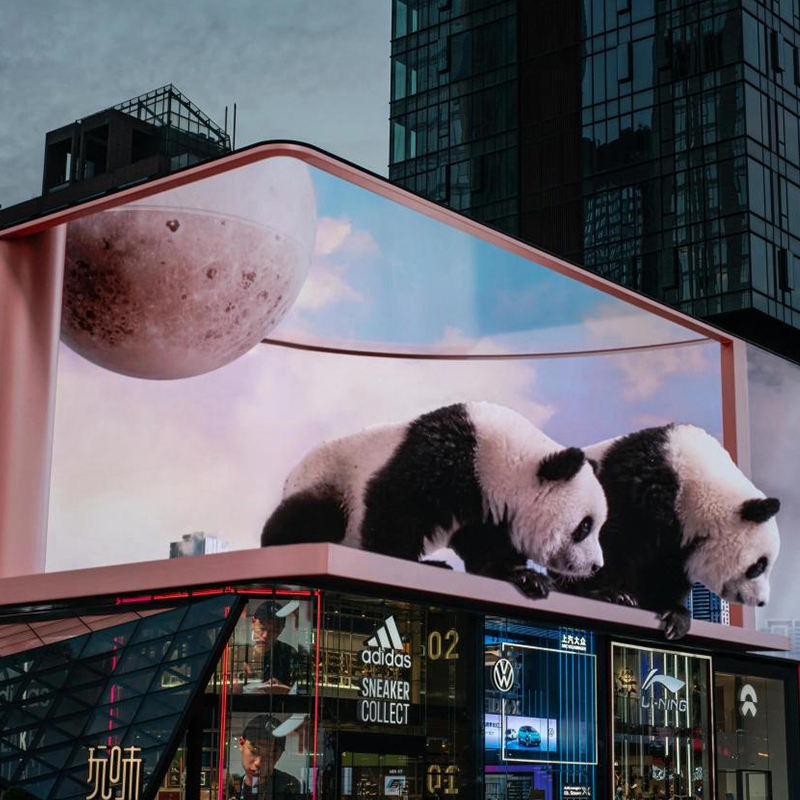

Supports customized right-angle splicing, widely used for mall exterior wall corners and smart city landmarks. With high refresh and high contrast, it can ensure the screen is smooth and no ghosting under strong outdoor light. One-stop supply of module and related steel structure guidance to make creative vision without blind spot.
All-weather capability
Excellent optical performance
Intelligent operation and maintenance system
Wide operating temperature: Stable work between -40℃ and 60℃ (Arctic version up to -50℃)
Dustproof and waterproof: IP65/IP68 protection level (can resist high pressure water jet cleaning)
Corrosion resistant: 316L stainless steel fasteners + nano-coating (qualified 3000-hour salt spray test)
Brightness:5000-12000 cd/m², visible to the naked eye under direct sunlight;
Refresh rate: ≥3840Hz (upgrading to 7680Hz is available), high speed video without any jerk or lag;
Color gamut: 92% NTSC (ΔE≤3), Domestic pro-level monitors;
Viewing angle: 160° horizontally/vertically, no color shift when viewing with wide angles.

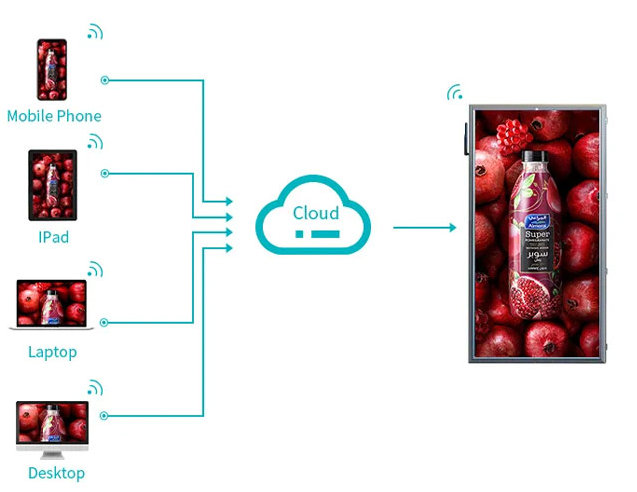

It can be operated through PC software and mobile apps, supports one-click upload through Wi-Fi, USB, and Ethernet cable. It supports multi-screen cluster control (supports TCP/IP, 4G). Scheduled power on/off and playlist preset are available. There are front and rear serviceability options to choose from.
Topview (Shenzhen) Digital Outdoor Display Solutions: Integrating intelligent brightness adjustment, remote playback control, and energy-efficient systems. From high-definition P3 modules to large-scale steel-structure projects, we offer a one-stop solution for all installation challenges! Our products are exported to over 50 countries—including destinations across Europe, the Americas, and Dubai—making us the professional choice for developing smart urban landmarks and digital media assets.
We simplify the intermediate process as the direct factory. We offer 24 hour stability test , technical support on site and after sales service for long time. Whether you need high definition large-scale displays in shopping malls or mobile led trucks fielding for dynamic missions, topview supplies cost-efficiency solution with high refresh rate and customized visual experiences according to your particular demands.
| Pixel Pitch(mm) | P2.5 | P3.33 | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| LED Encapsulation | Kinglight | ||||||
| LED Type | SMD 1415 | SMD 1921 | SMD 1921 | SMD 2525 | SMD 2727 | SMD 3535 | SMD 3535 |
| Cabinet Size (W x H, mm) | 960*960 | ||||||
| Depth(mm) | 150 | ||||||
| Weight(kg/m2) | 45 | ||||||
| Standard Brightness(nits)(cd/m2) | 5500 | ||||||
| Viewing Angle | 140 * 140 | ||||||
| Contrast Ratio | 2000 : 1 | ||||||
| Power Consumption (Avg.)(Watts/Tile) | 300 | ||||||
| Refresh Rate(Hz) | 1920 | ||||||
| Driving IC | ICN2028s | ICN2038s | ICN2027 | ||||
| Protection (IP) Rating | IP65 | ||||||
| Cabinet Type | Steel | ||||||
| Data Processing | 14 Bit | ||||||
| Power Supply(300w) | Chuanglian | ||||||
These urban bus shelters, designed for information dissemination and advertising display, feature high brightness as well as waterproof and dustproof capabilities, enabling reliable all-weather operation. Clearly visible from a distance, they are ideally suited for smart city initiatives and outdoor advertising applications.

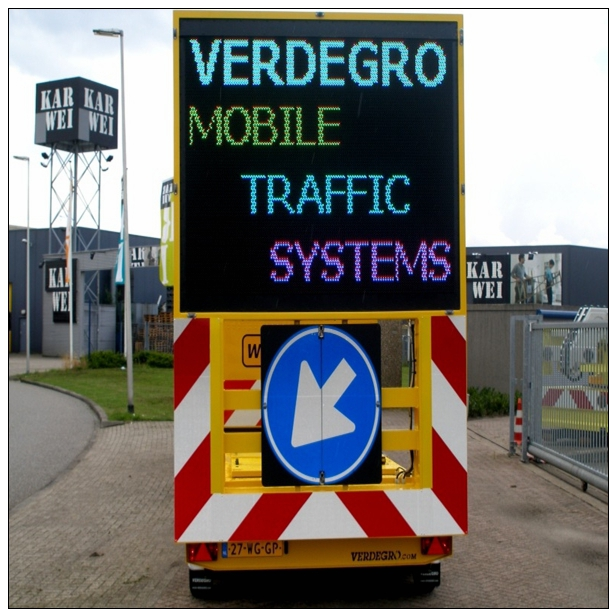

Designed for information dissemination on highways and urban roadways, this high-brightness display features waterproof and dustproof capabilities, enabling reliable, all-weather operation. It ensures clear legibility from a distance and supports the real-time updating of traffic advisories, thereby enhancing the efficiency of intelligent traffic management.
For football stadiums, basketball arenas, and live broadcasts of major sporting events, our systems clearly display scores, advertisements, and real-time footage—thereby enhancing the spectator experience and boosting commercial value. This constitutes a key strategic focus for Topview.

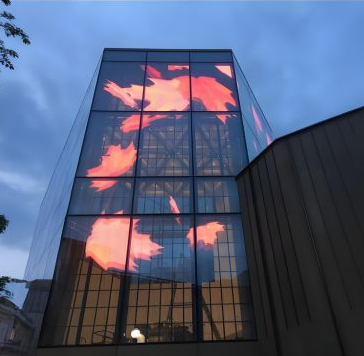

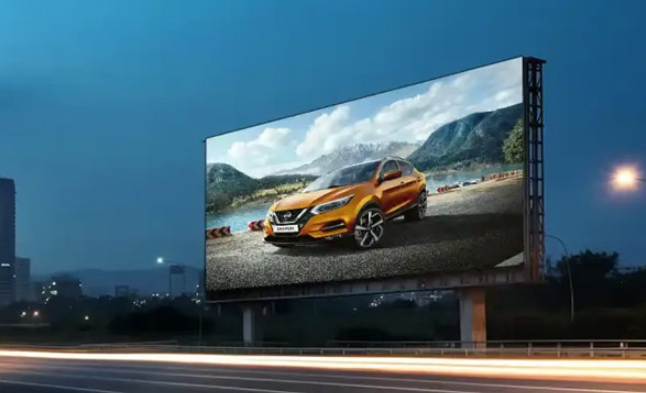

Suitable for advertising, informing and improving brand image, featured with high resolution, high brightness and wide viewing angle and support long distance watching clearly, can maximize the propagation effect of business space and the guide efficiency of the flow for people.

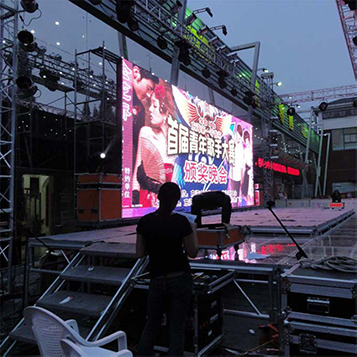

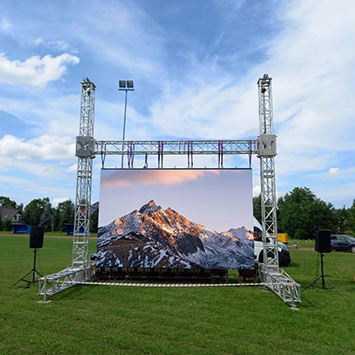

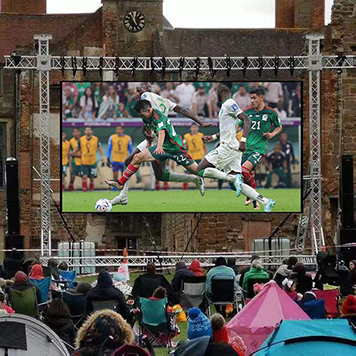

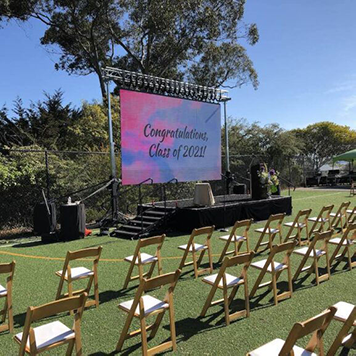

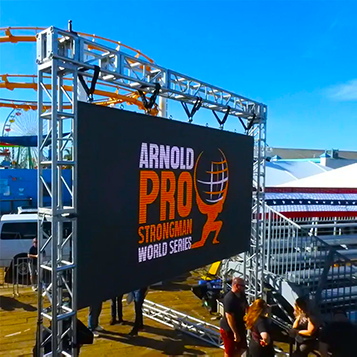

A portable outdoor LED display screen—perfectly suited for marathons, music festivals, and live sports broadcasts. Featuring rapid deployment and instant plug-and-play functionality, it comes equipped with built-in audio and power systems. It enhances on-site engagement, precisely targets key demographics, and delivers high-impact digital marketing experiences.
3840Hz and 7680Hz (suitable for esports) eliminate flicker during 4K/8K video recording. Standard model: 1920Hz. Please contact us for special requirements!
It is more energy efficient and supports intelligent brightness adjustment with an average power consumption reduction of over 30%, compared with traditional advertising light boxes.
The brightness of the screen was typically 5000~8000 nits, it was the full sunshine readable and can be adjusted for different application conditions.
Ok. Our certified installers are located in over 50 countries.
Shenzhen Topview Display Technology Co., Ltd. is a leading LED display manufacturer in China. If you need an excellent LED display factory, Shenzhen Tuowei Display Technology Co., Ltd. is your first choice. Please send us your detailed requirements so we can provide you with a quote immediately.
