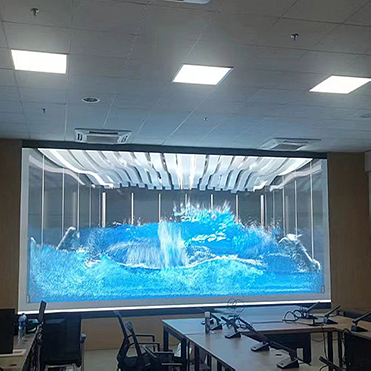

3D LED Display With its very high contrast and sense of depth, 3D LED can produce very impressive immersive experiences and is often used in high-end showrooms, shopping mall atriums or corporate headquarter lobbies.

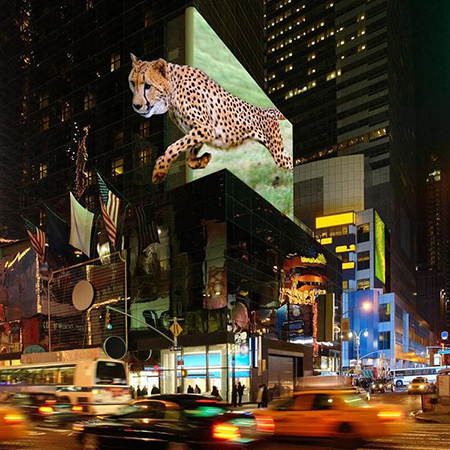

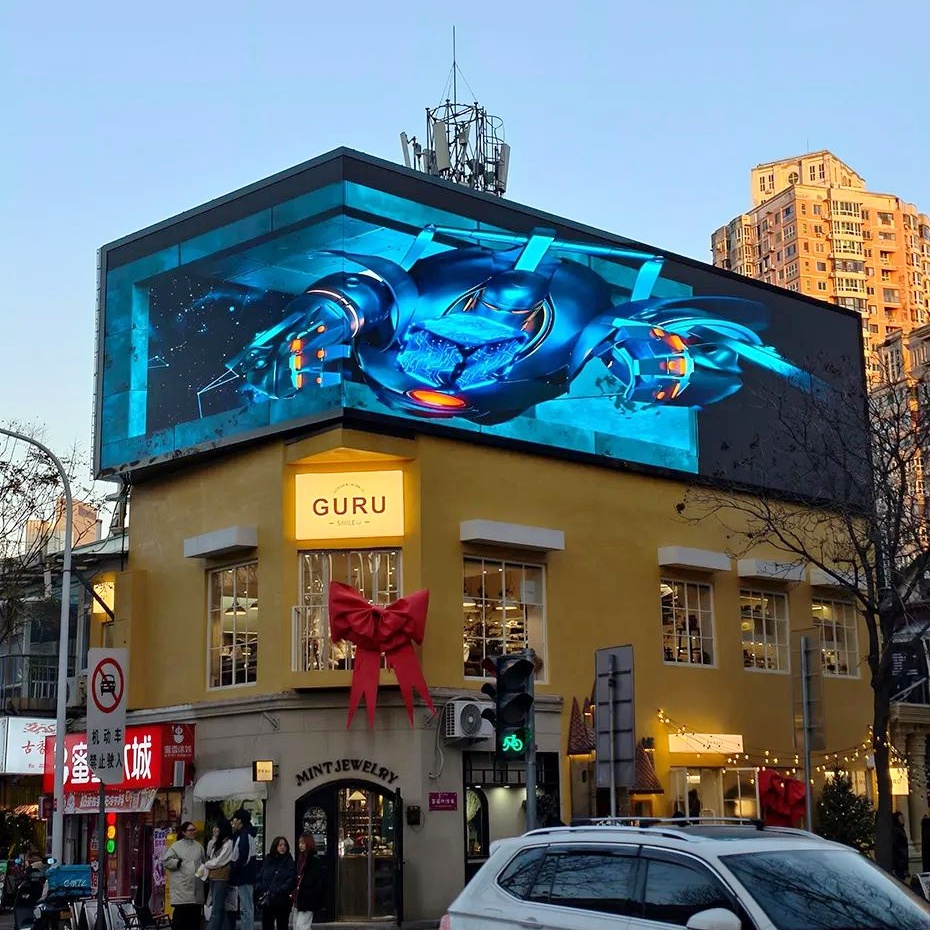

An outdoor naked-eye 3D LED display becomes a new card for the digital city building with high brightness, water-proof, seamless matching corner and shocking 3D vision.
It can create a holographic effect of objects levitating without obstructing background light or the viewer's line of sight, resulting in a very "futuristic" digital effect.
Excellent visibility even under direct sunlight
Suitable for outdoor urban environments
Stable performance in different weather conditions
Attracts tourism and business attention

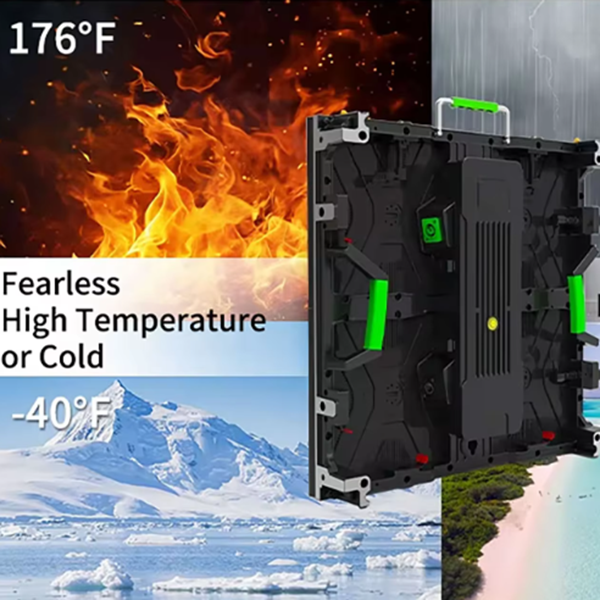

Status Screen There are no glass separates between status screen and instrument dial which can be clearly seen. It is a Injection molding waterproof rubber treatment, fixed screen body by screws IP65 waterproof dustproof rear case of display.
Superb workmanship and the systematic check process ensure the quality of product.

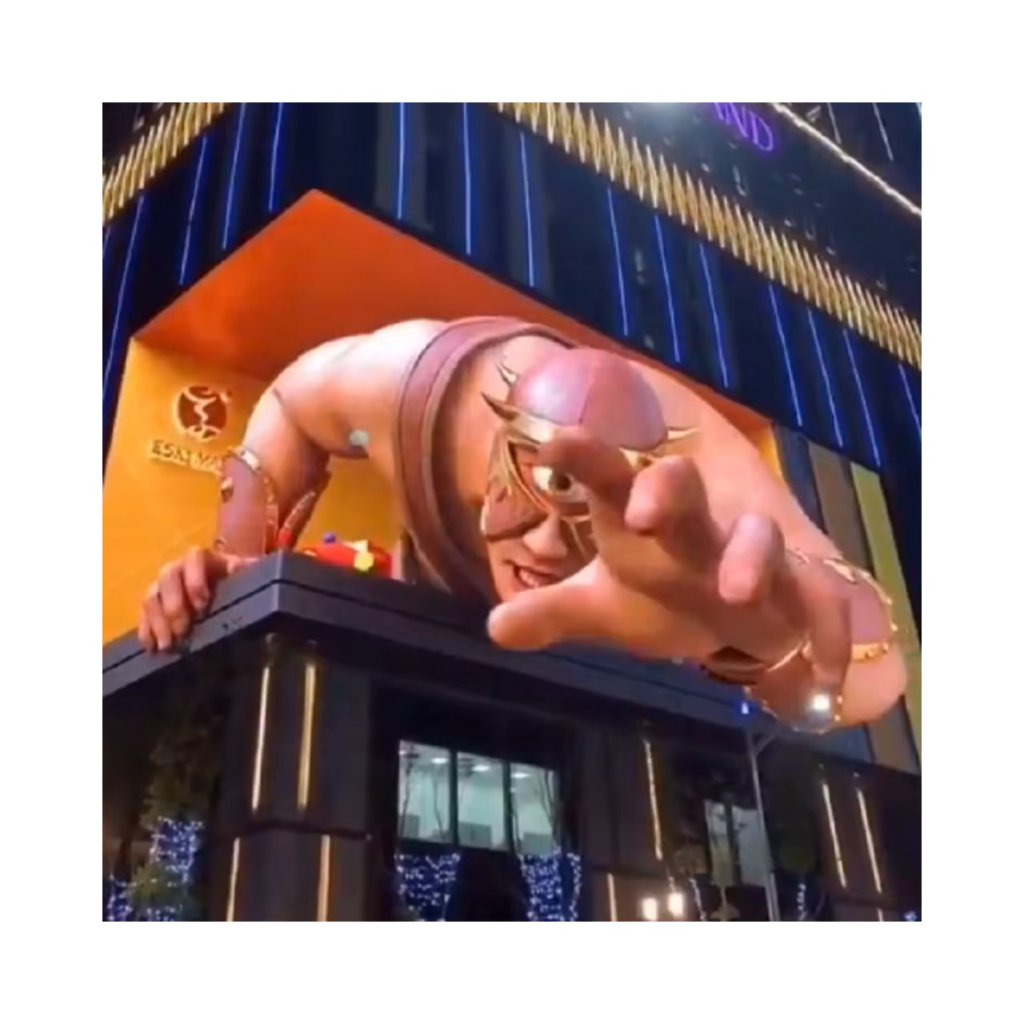

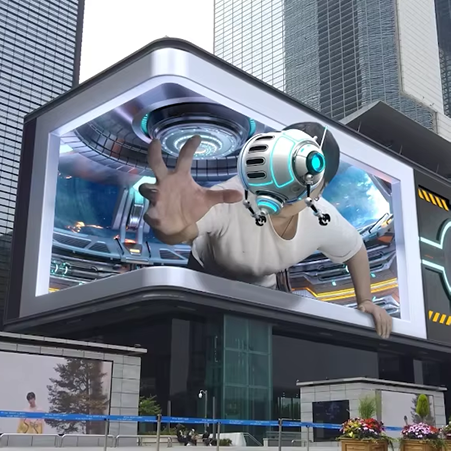

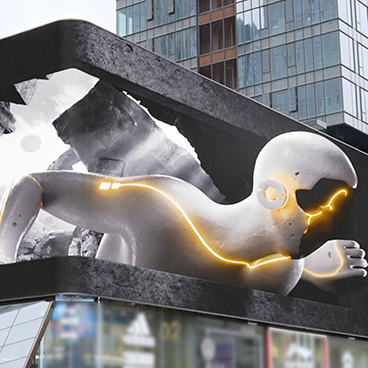

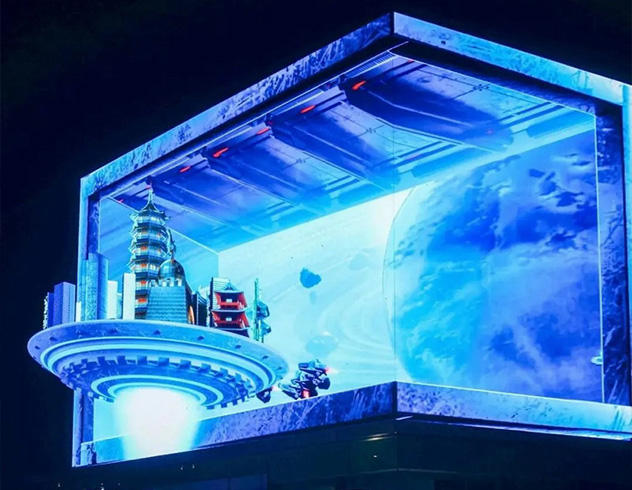

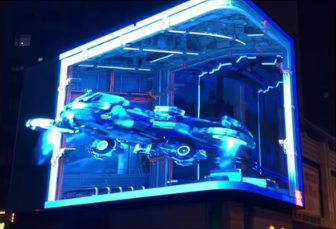

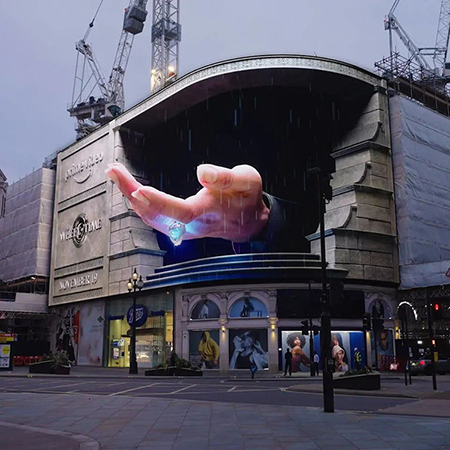

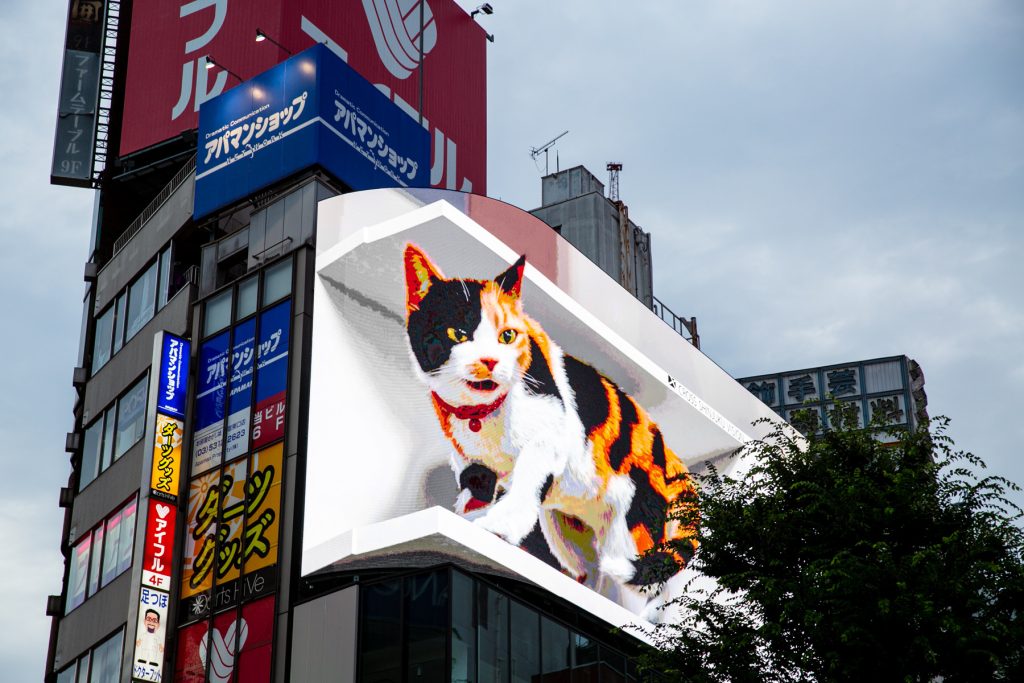

3D screens are usually L-shaped or curved. Together with the patent 45° beveling module, a zero-gap transition between two 90° corners can be realized to completely eliminate the visual break.
The outdoor 3D screen brightness can reach 6000-8000 nits, which make the 3D effect still vivid and realistic under the strong direct sunlight. The screen using COB packaging technology converts the point light source to the surface light source, the light is softened, even if you watch from a short distance no feeling of granularity
| Model | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| Usage | Outdoor | ||||||
| Cabinet Size(mm) | 960*960 | ||||||
| Cabinet Resolution (dot) | 384*384 | 320*320 | 240*240 | 192*192 | 160*160 | 120*120 | 96*96 |
| Scanning | 1/16S | 1/16S | 1/10S | 1/8S | 1/8S | 1/5S | 1/2S |
| Packaging Technology | SMD | ||||||
| Installation | Front/Back | ||||||
| Density(dot/㎡) | 160000 | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/㎡) | 5000 | 5000 | 5000-6500 | 5000-6000 | 5000-6000 | 5000 | 4000-7000 |
| Max. Power Consumption(W) | 1000 | 1000 | 900 | 800 | 800 | 800 | 1000 |
| Average Power Consumption(W) | 350 | 350 | 300 | 400 | 300 | 300 | 500 |
| Cabinet Weight (kg) | 40 | ||||||
| Cabinet Material | Iron | ||||||
| IP Rate | IP65 | ||||||
| Grayscale | 10000:1 | ||||||
| Refresh Rate(hz) | 3840 | ||||||
| Frame Change Frequency | 50/60Hz | ||||||
| Horizontal Viewing Angle | ＞140° | ||||||
| Vertical Viewing Angle | ＞140° | ||||||
| Best Viewing Distance | >2.5m | >3m | >4m | >5m | >6m | >8m | >10m |
| Input Voltage | AC110-220V | ||||||

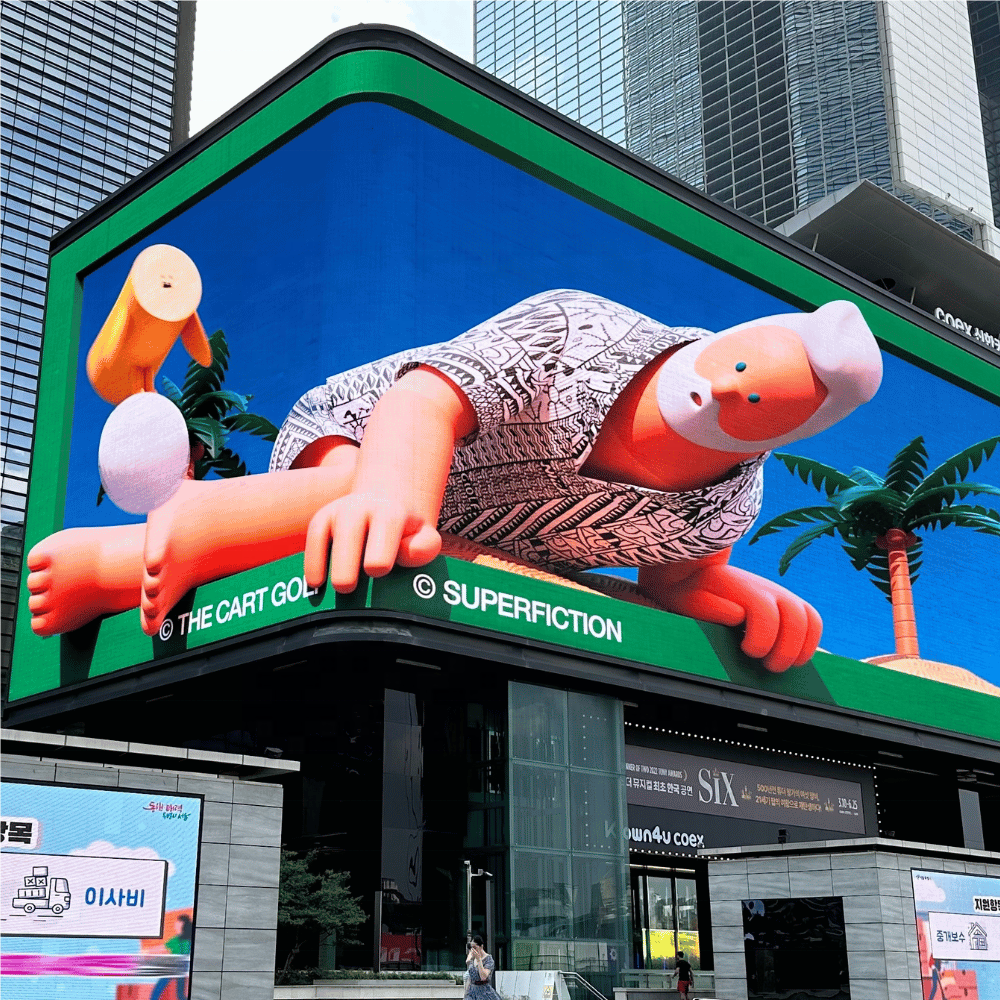

The naked eye 3D large screen is made with P3/P4 high resolution distance and IP65 protection. The unique corner seamless technology combined with customized 3D material, realizes product effect and brand effect in one.
3D LED displays are used for the digital restoration of cultural relics, the immersive reproduction of historical scenes, and digital wayfinding.

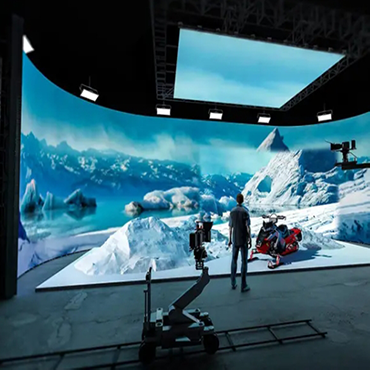

The 3D LED display system of the holographic cinema supports 8K ultra high definition resolution, enabling the audiences to enjoy a futuristic, 3D without glasses immersive viewing experience.
3D digital display terminals, designed specifically for exhibitions, can showcase product details and are a high-end choice to enhance the technological feel of a booth and increase visitor numbers.
No. Naked-eye 3D technology is used on the display, so you don't need any glasses.
Usually in the range of P4 to P10, which is determined by the distance from which it will be viewed and the size of the project.
Perfect Yes, but corners or curves create a stronger sense of depth.
Yes. Naked-eye 3D screens require specially produced 3D video content.
It depends on pixel pitch and screen size, but most outdoor 3D screens are optimized for mid-range viewing distances.
Shenzhen Topview Display Technology Co., Ltd. is a leading LED display manufacturer in China. If you need an excellent LED display factory, Shenzhen Tuowei Display Technology Co., Ltd. is your first choice. Please send us your detailed requirements so we can provide you with a quote immediately.
